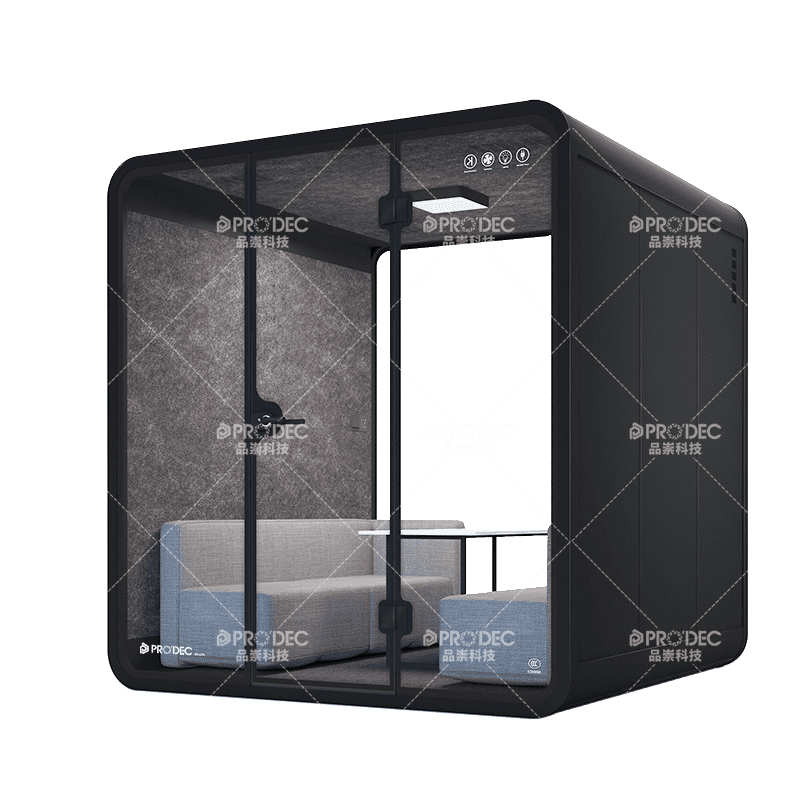

隔音舱 · 配色
color selection

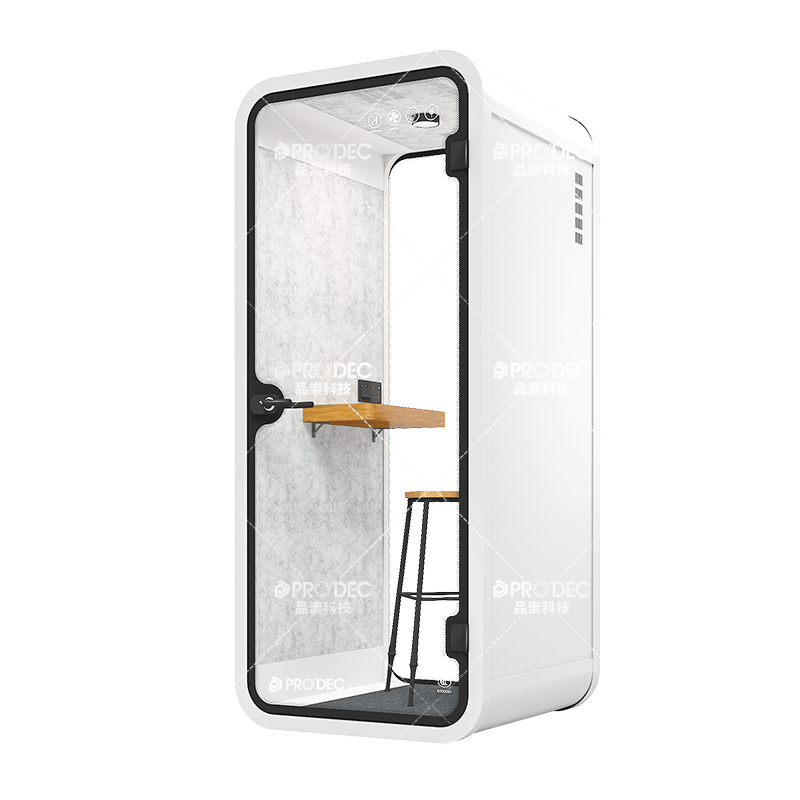

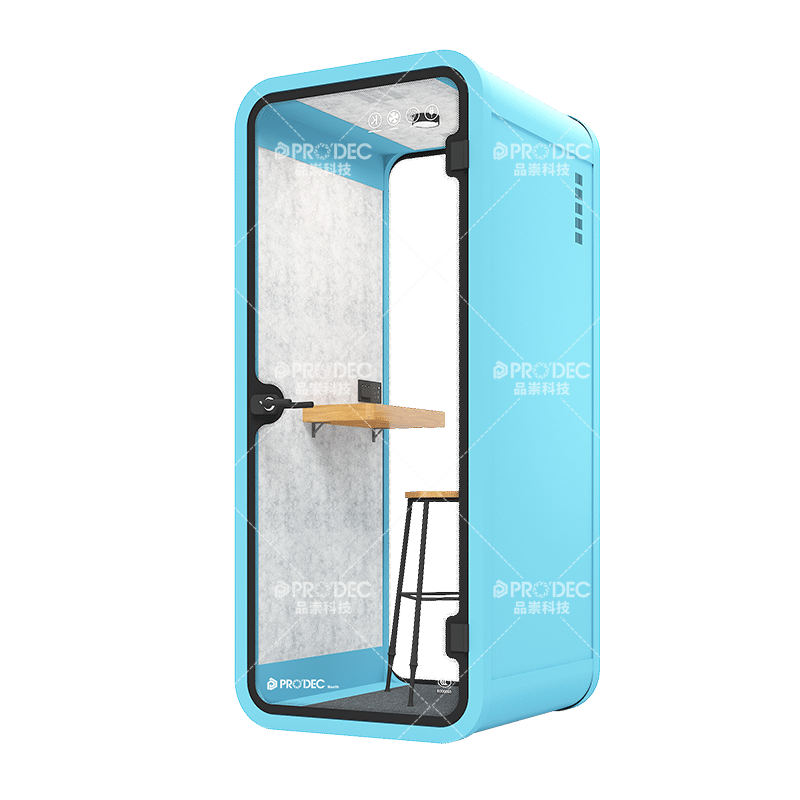

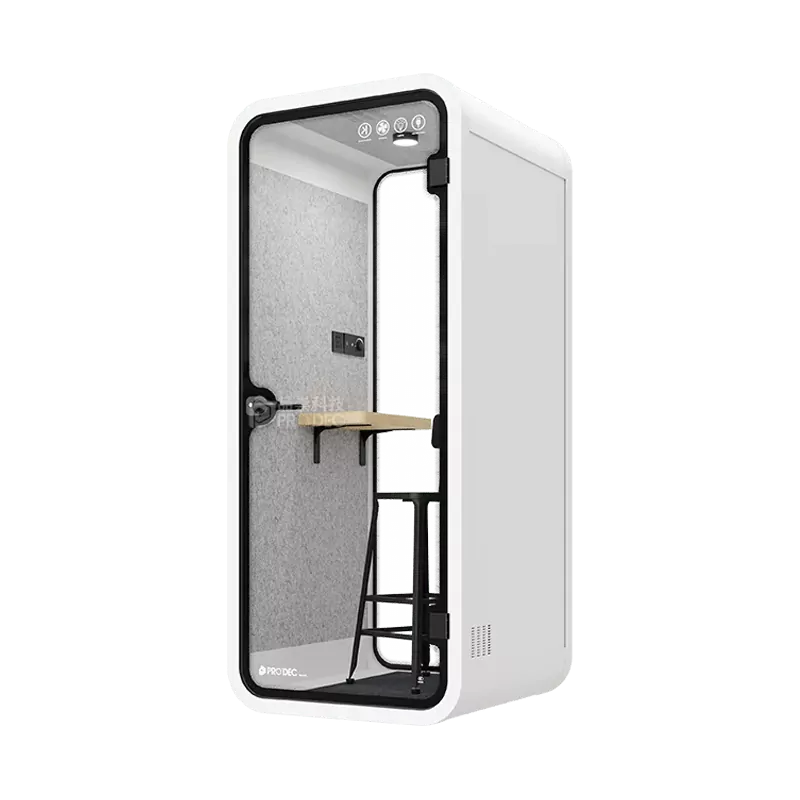

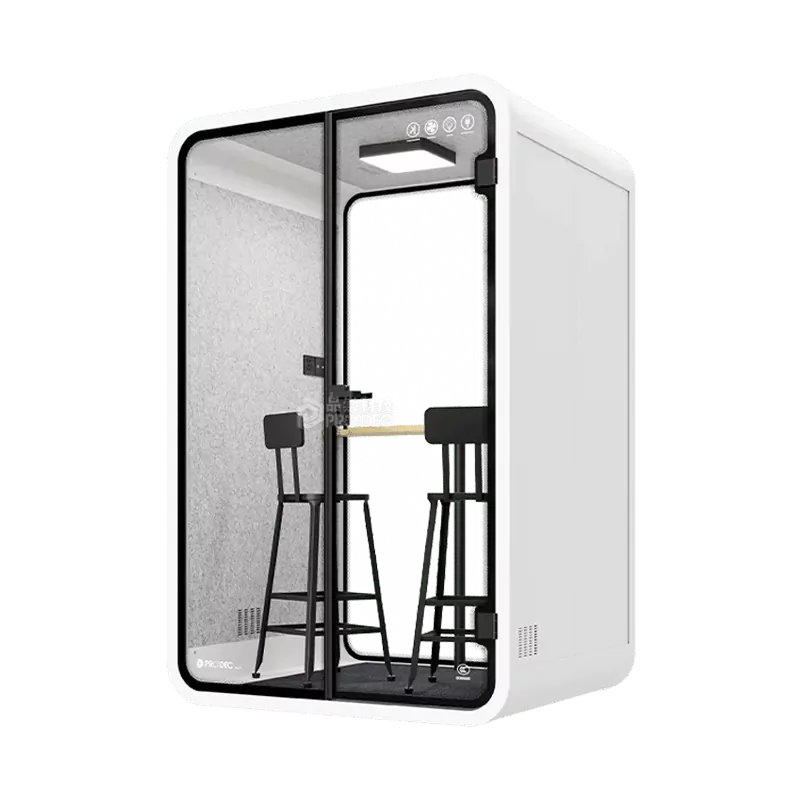

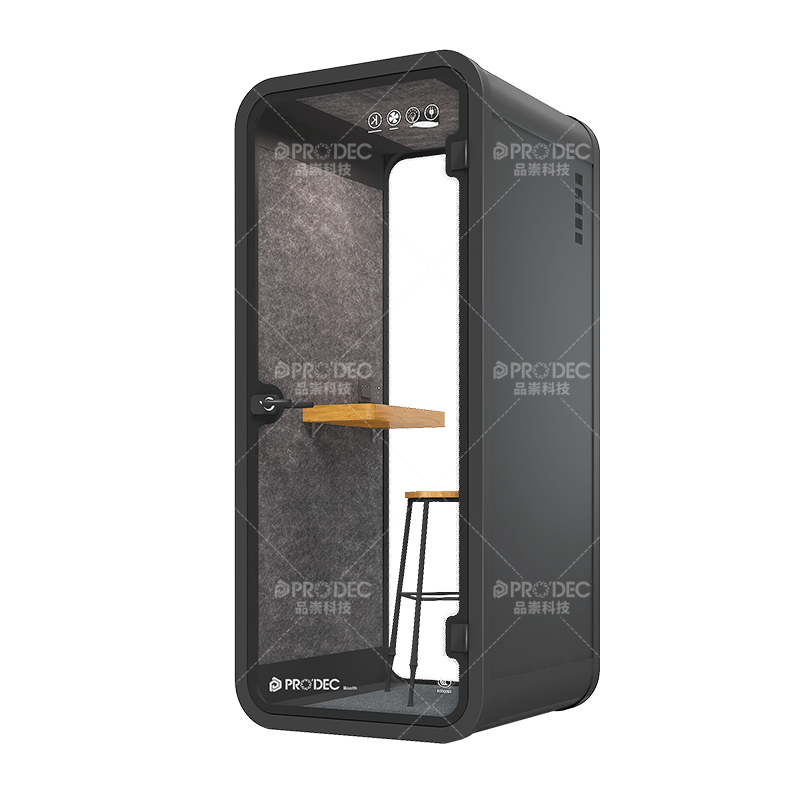

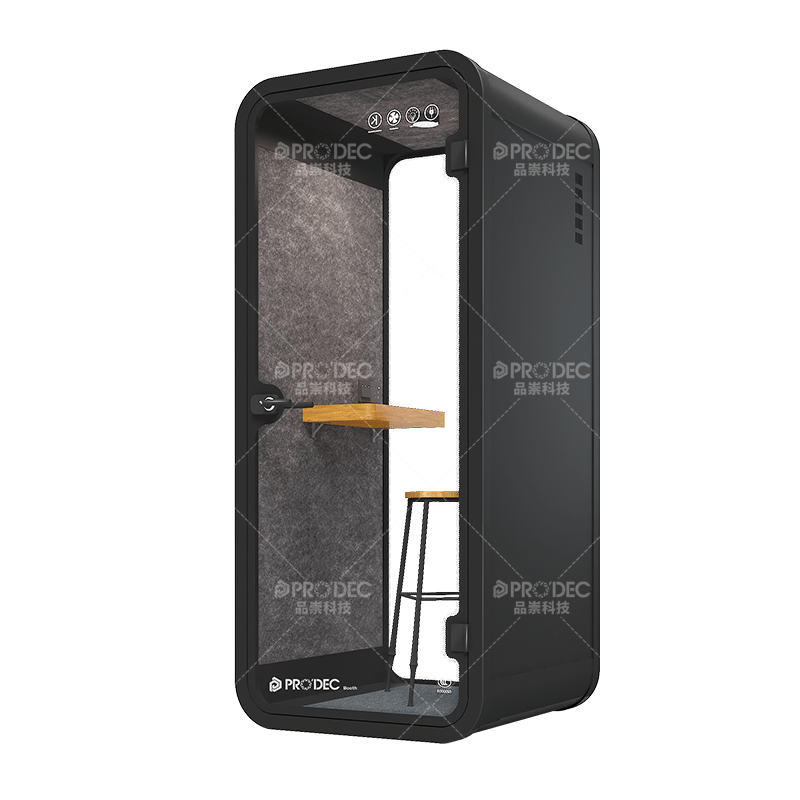

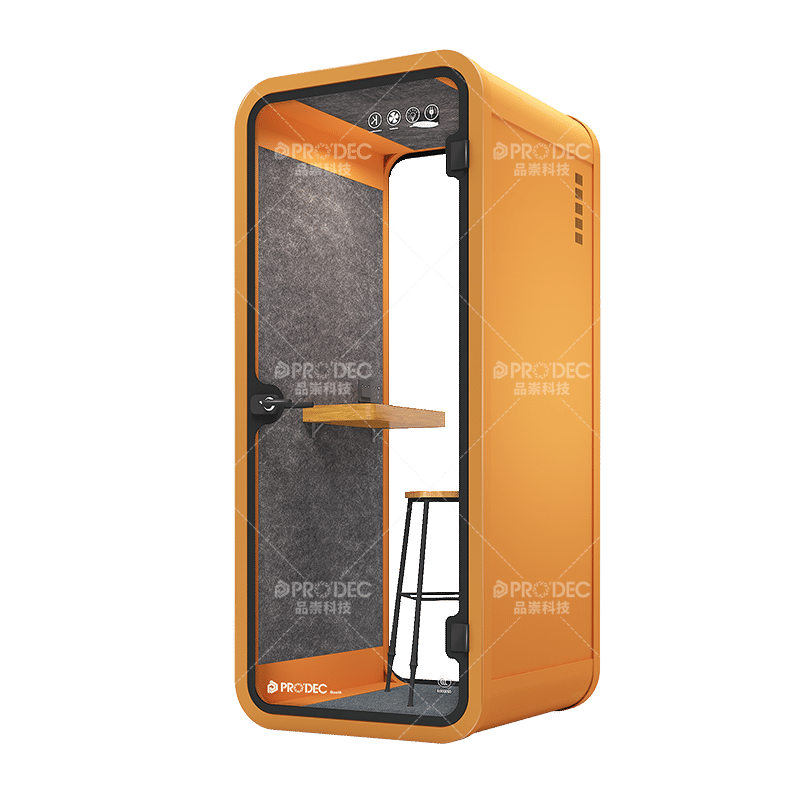

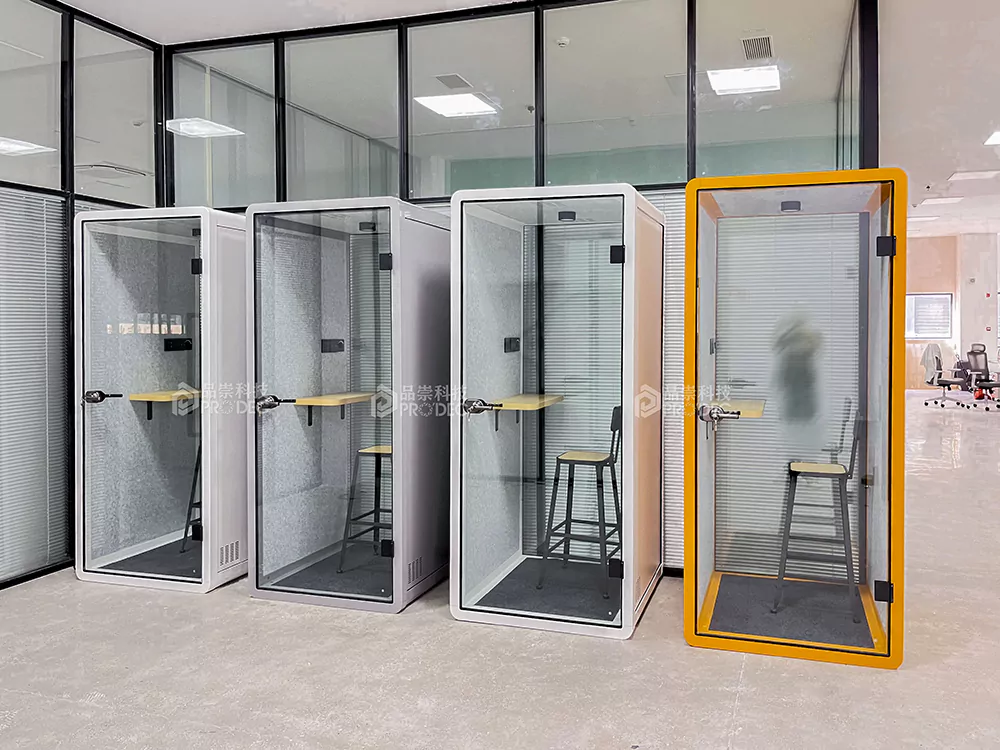

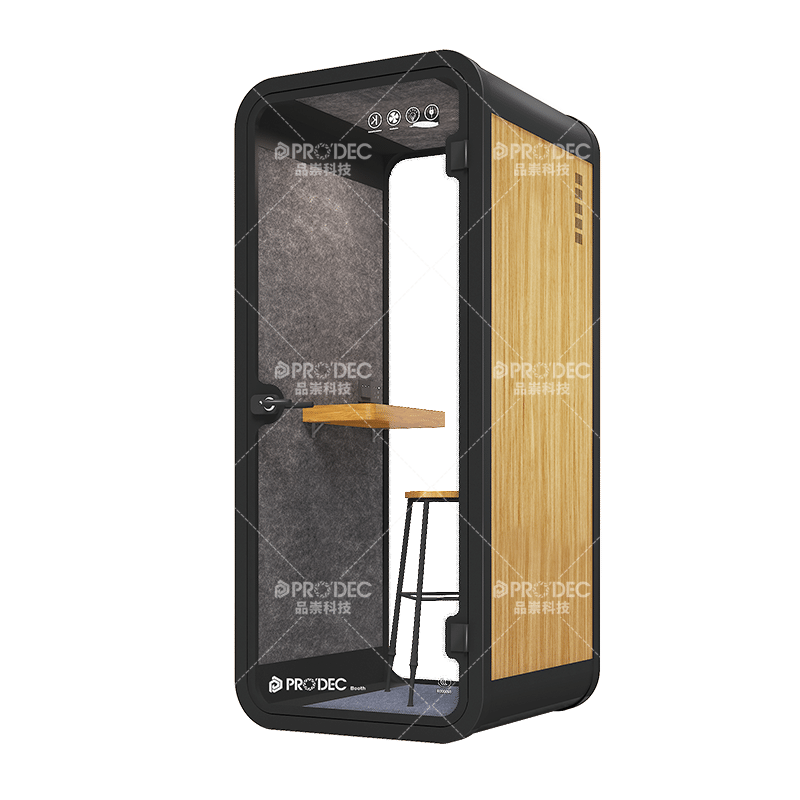

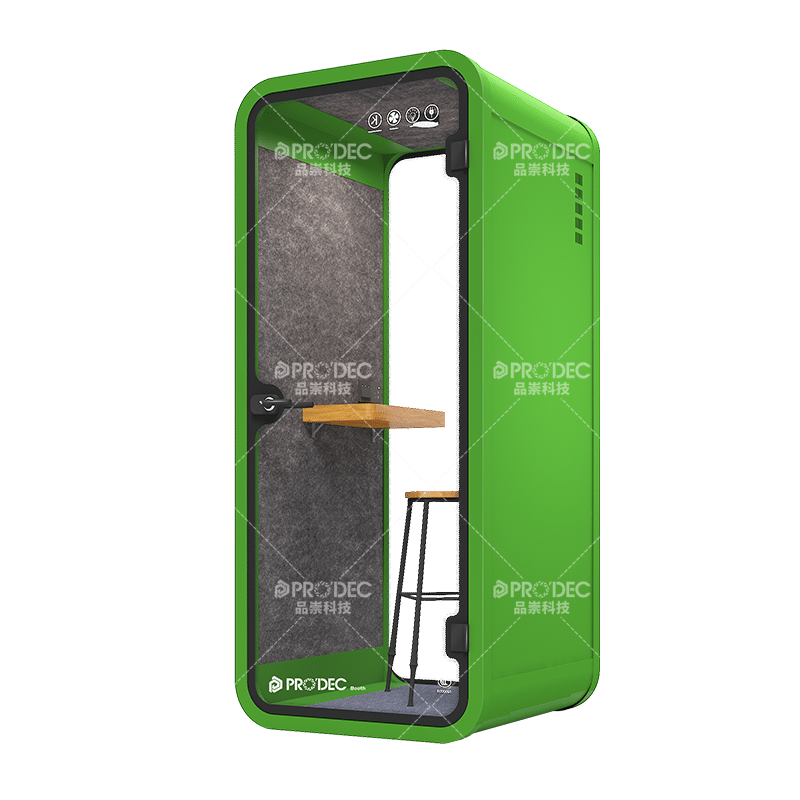

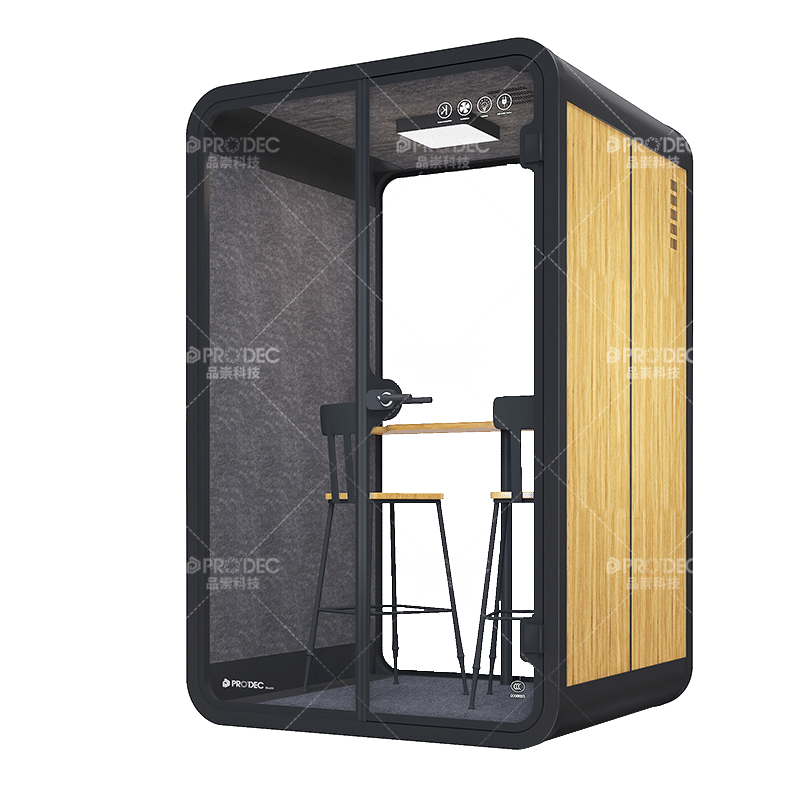

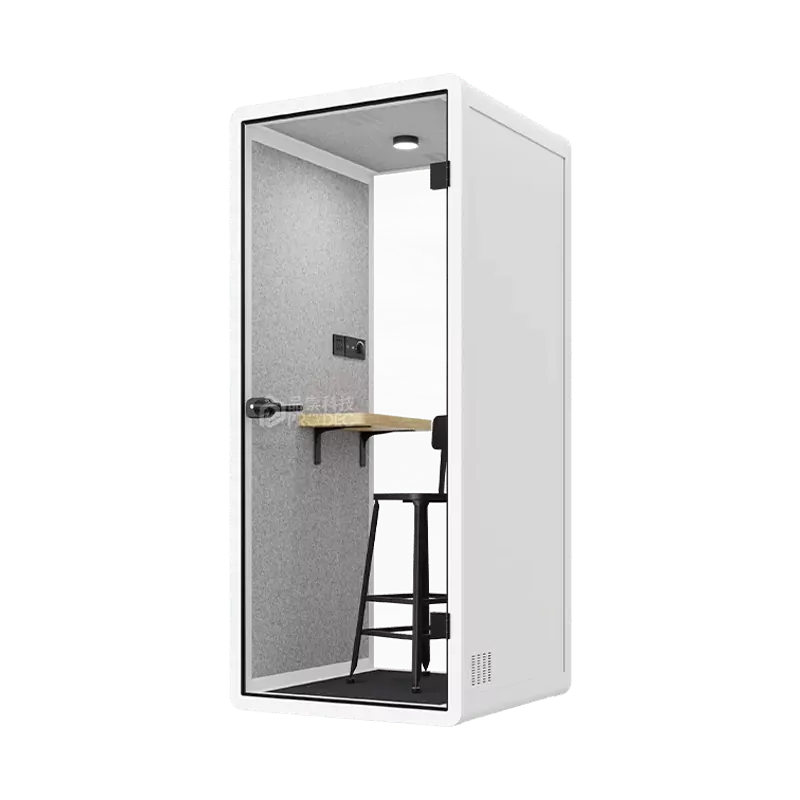

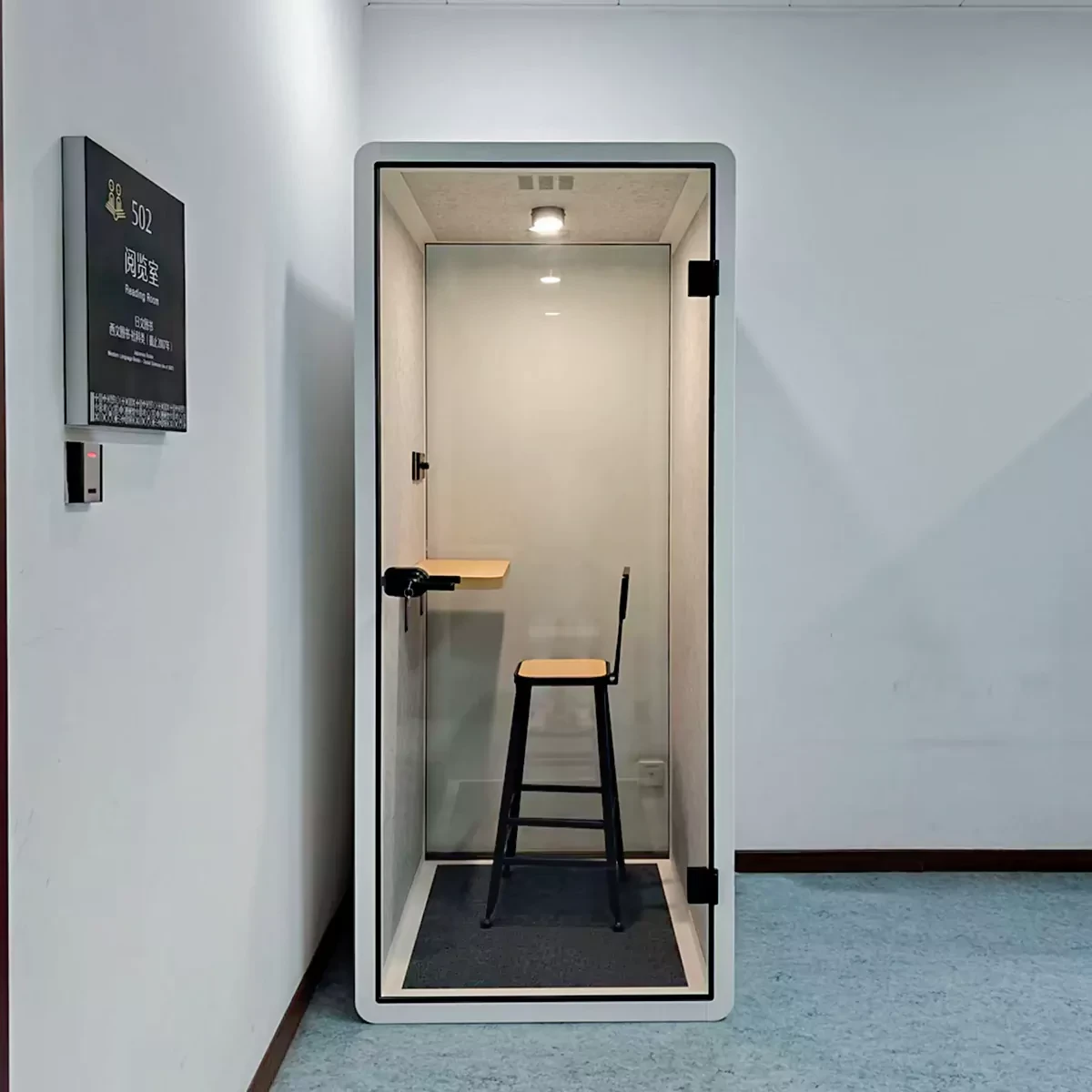

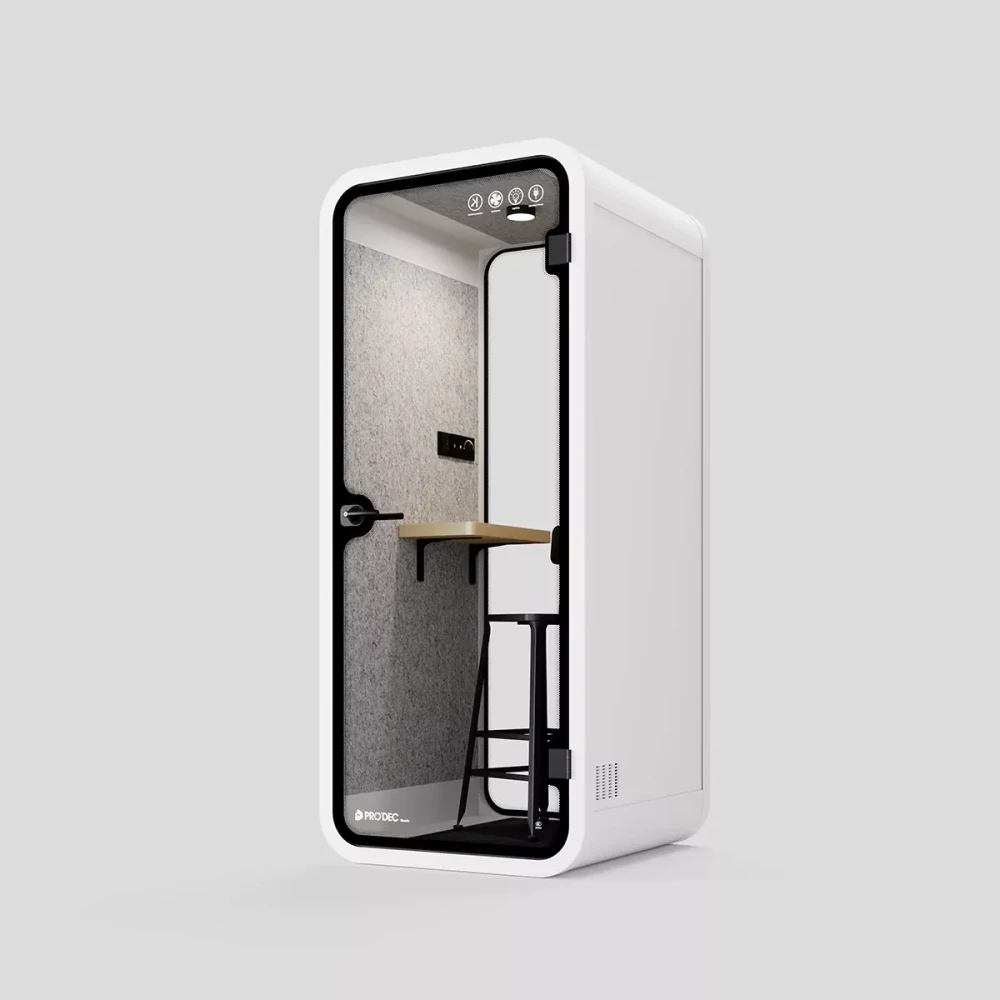

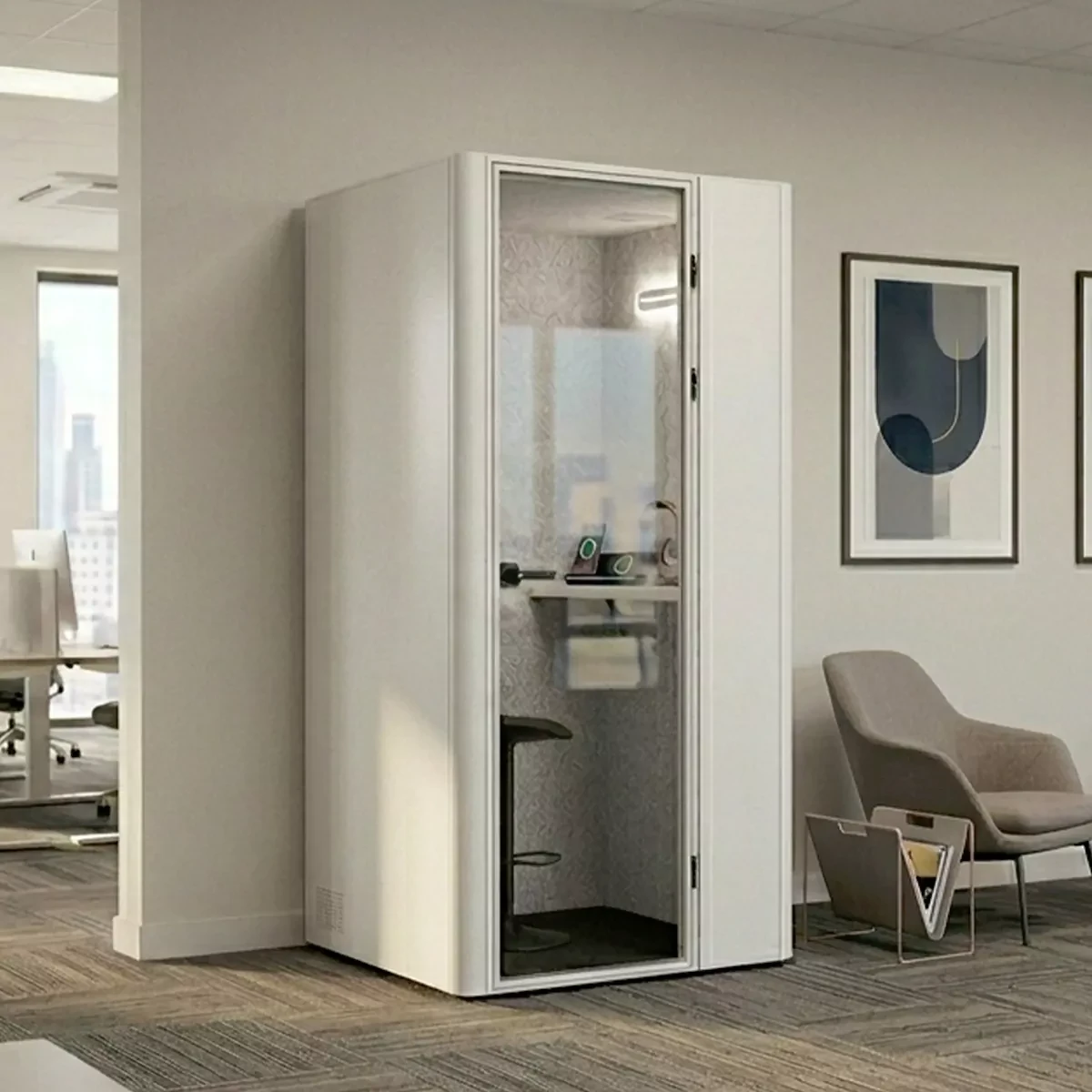

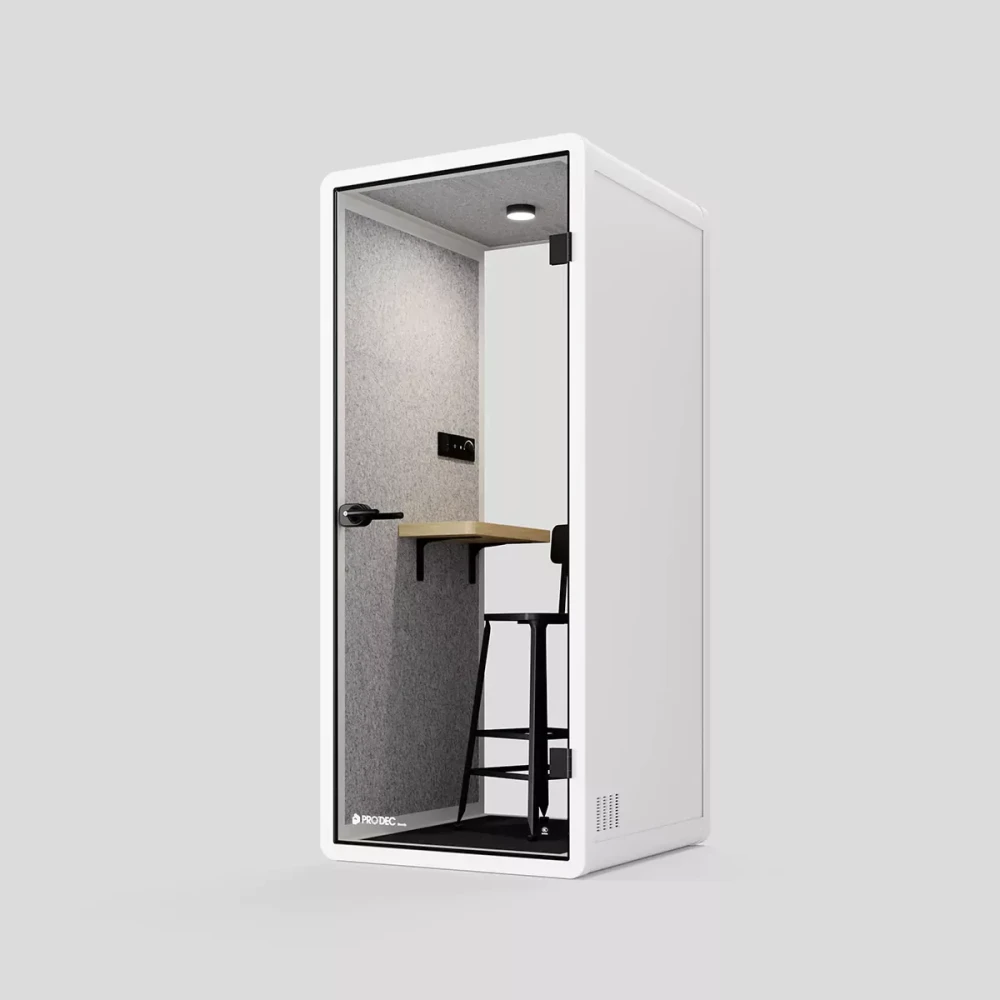

1人S型

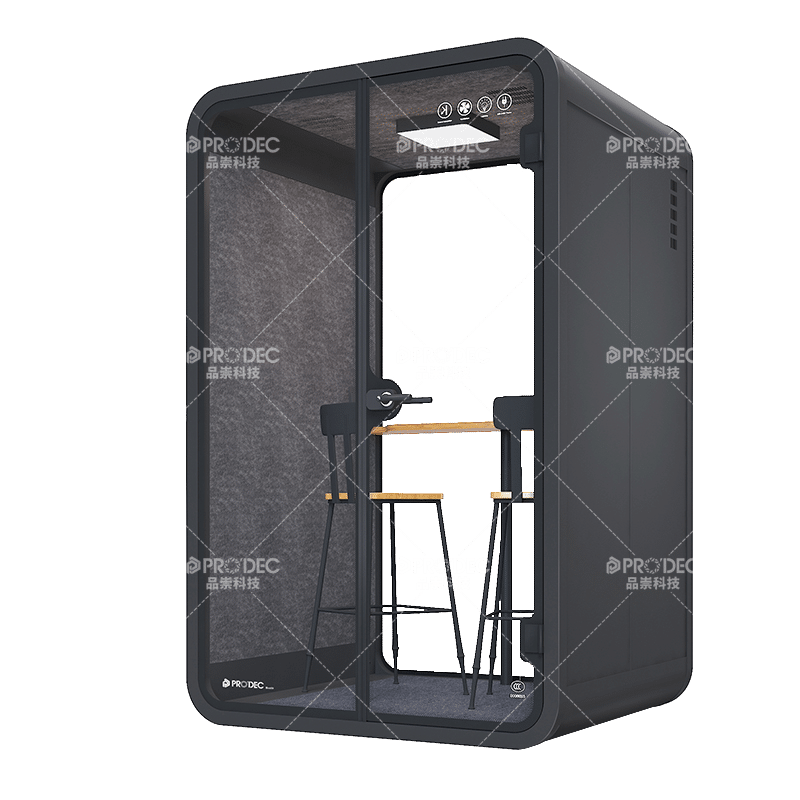

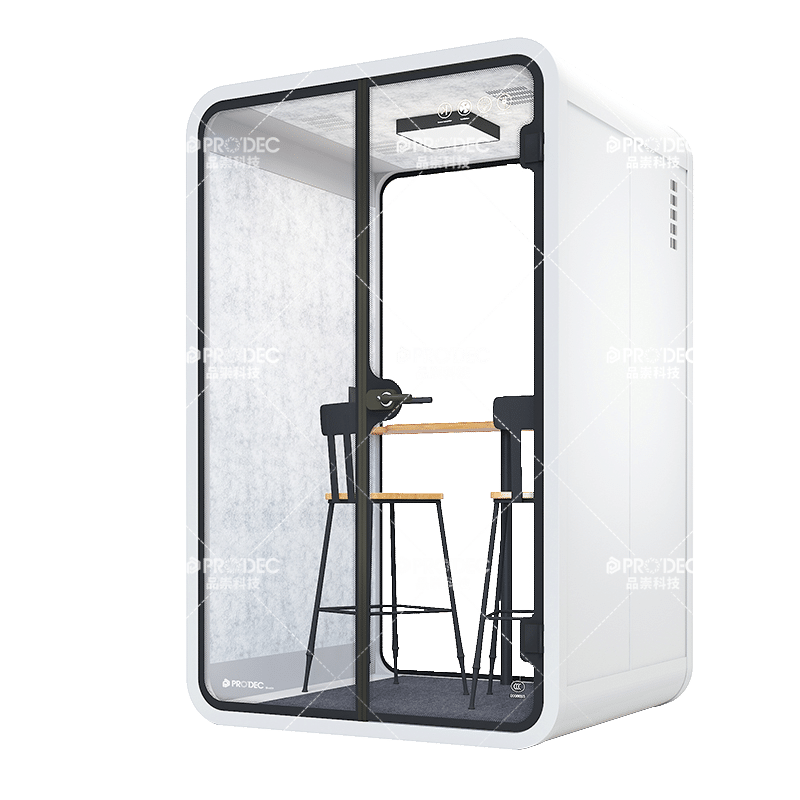

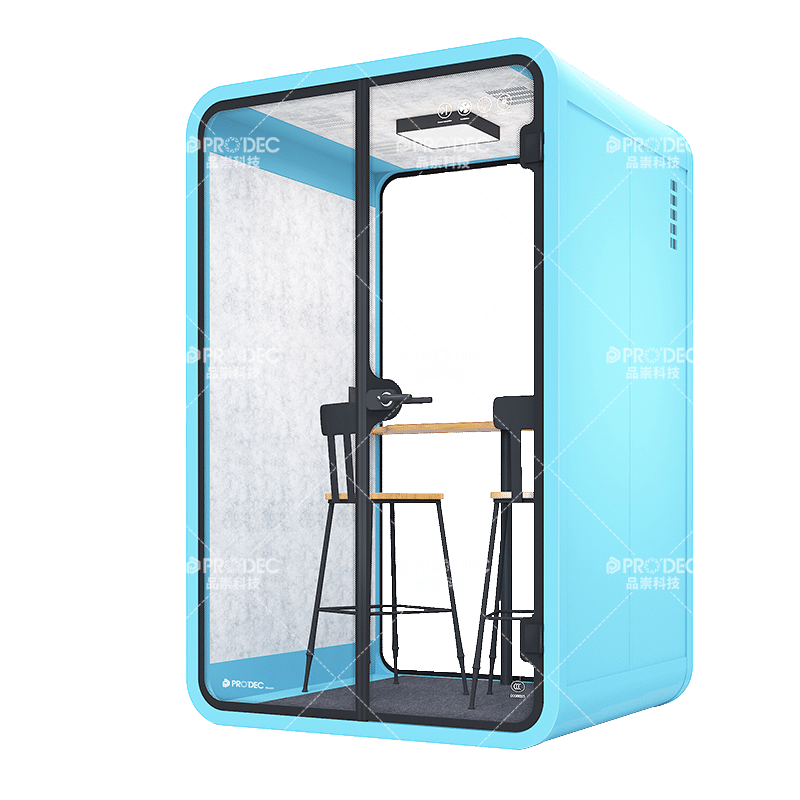

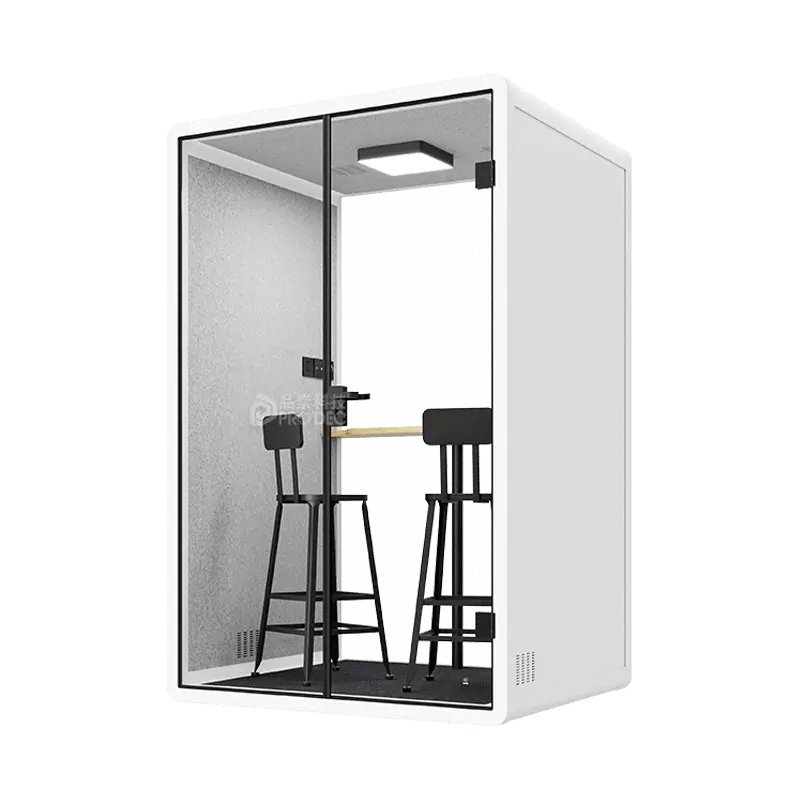

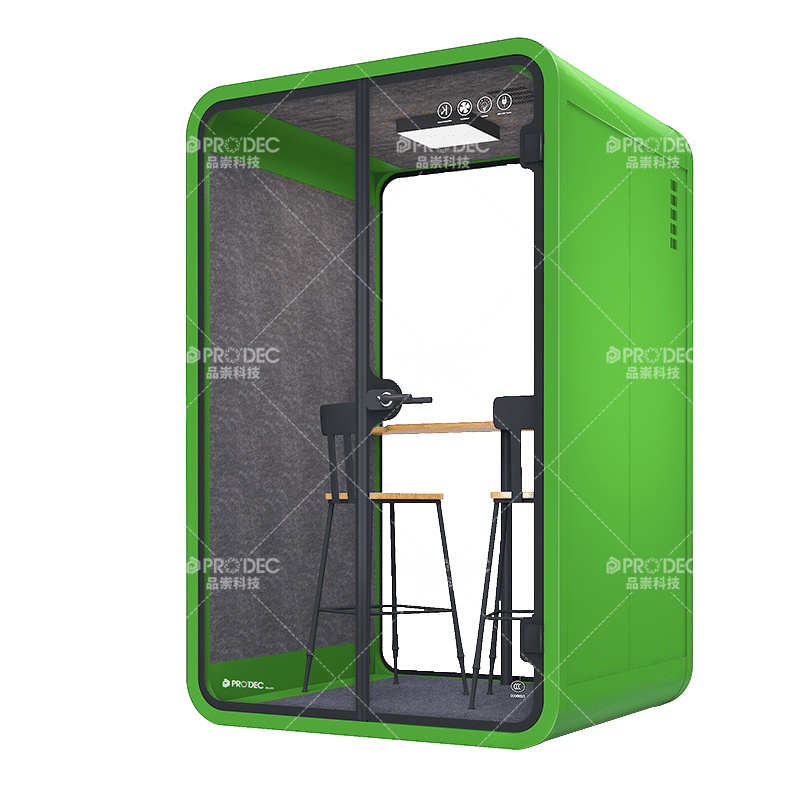

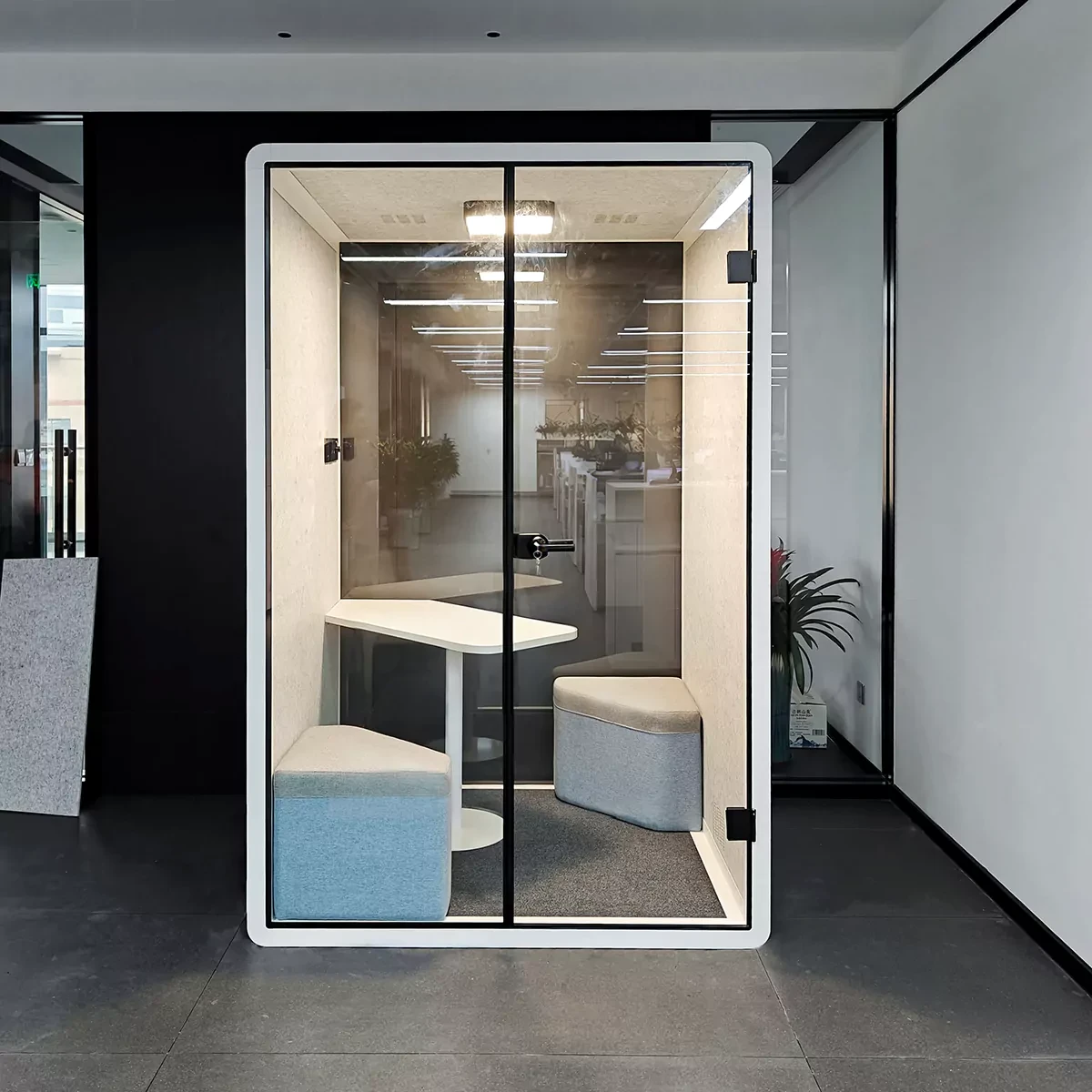

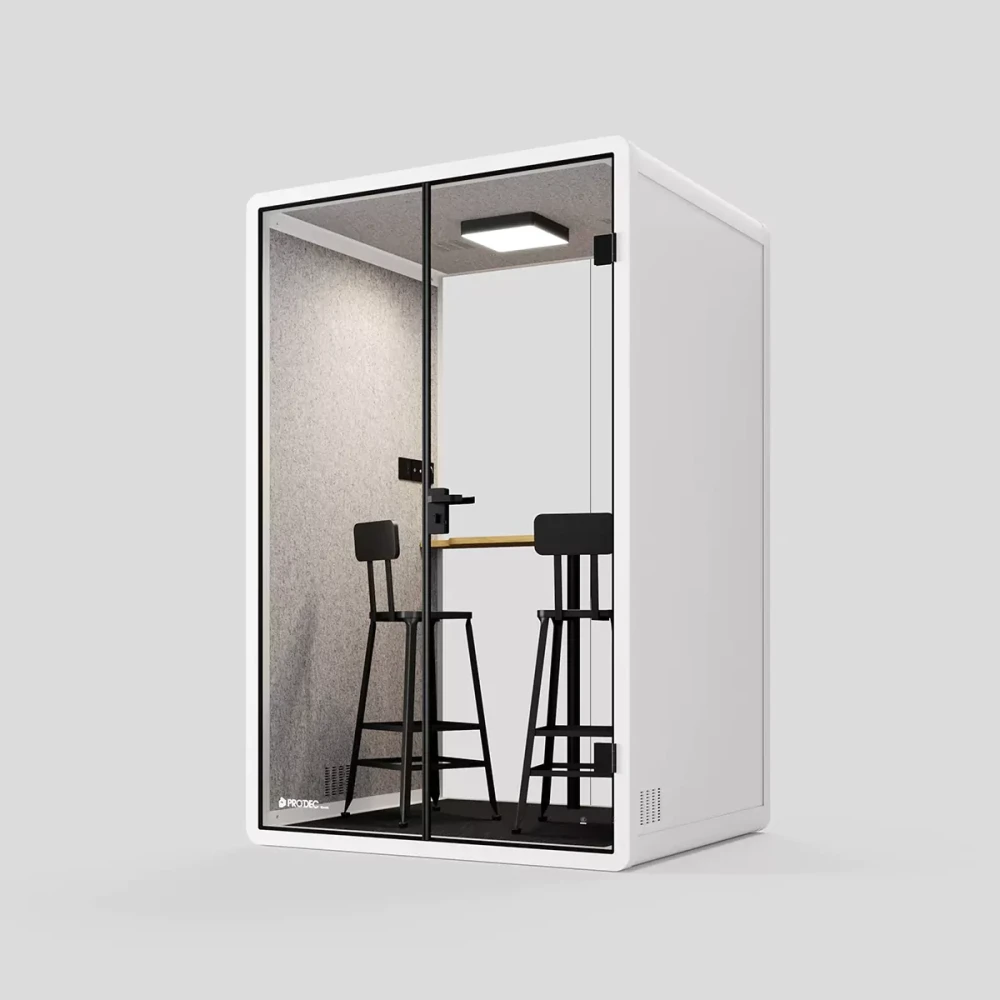

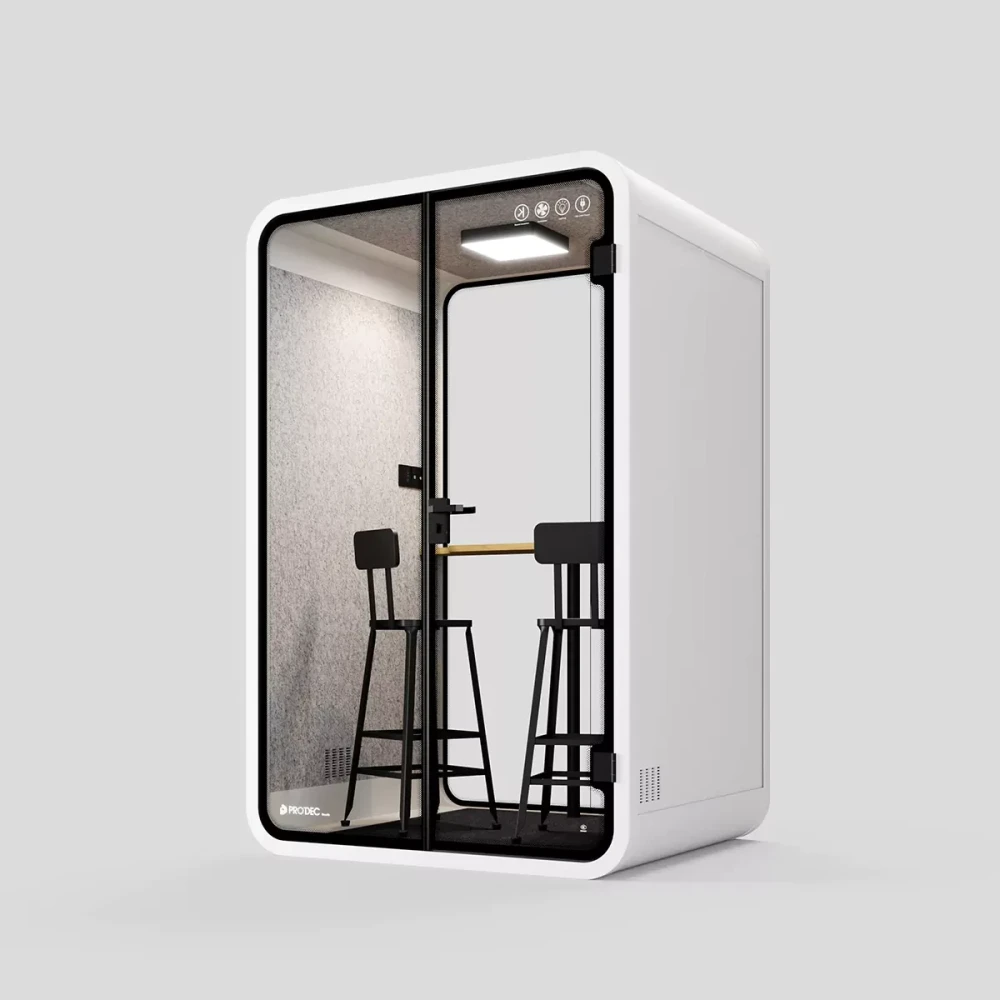

2人M型
1人S型
2人M型

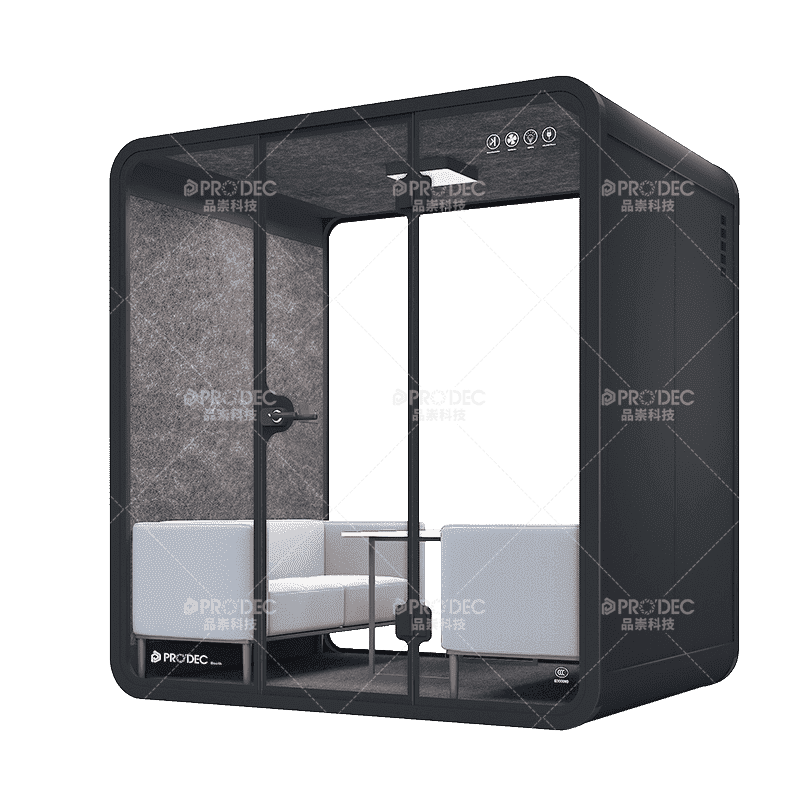

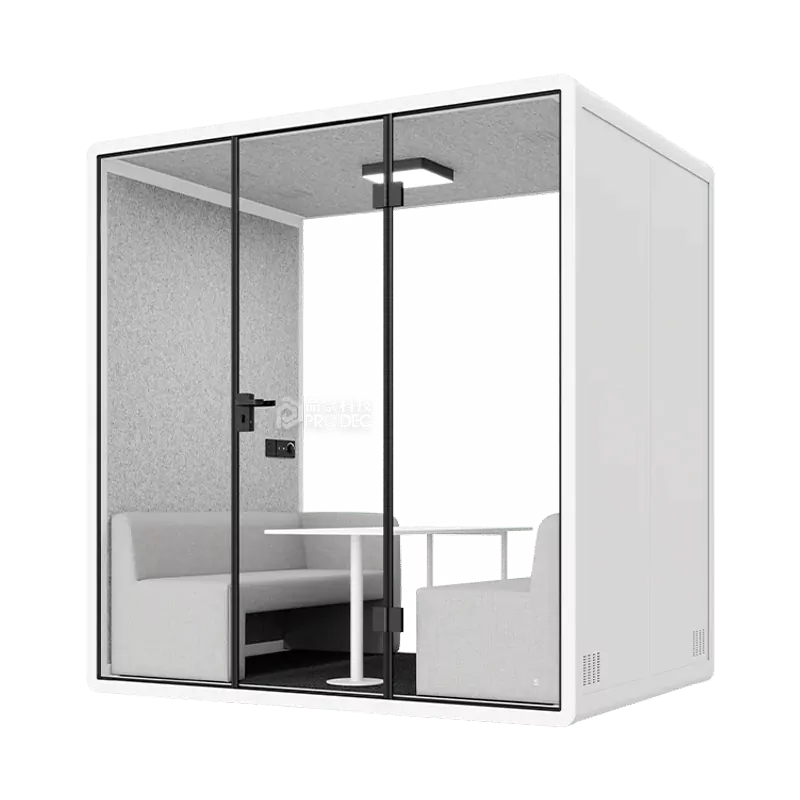

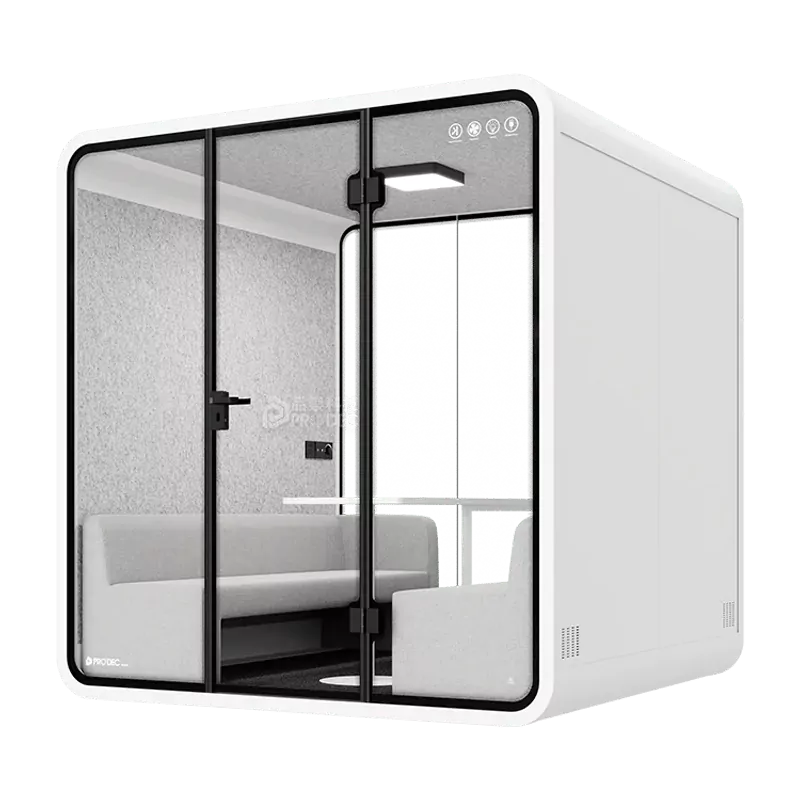

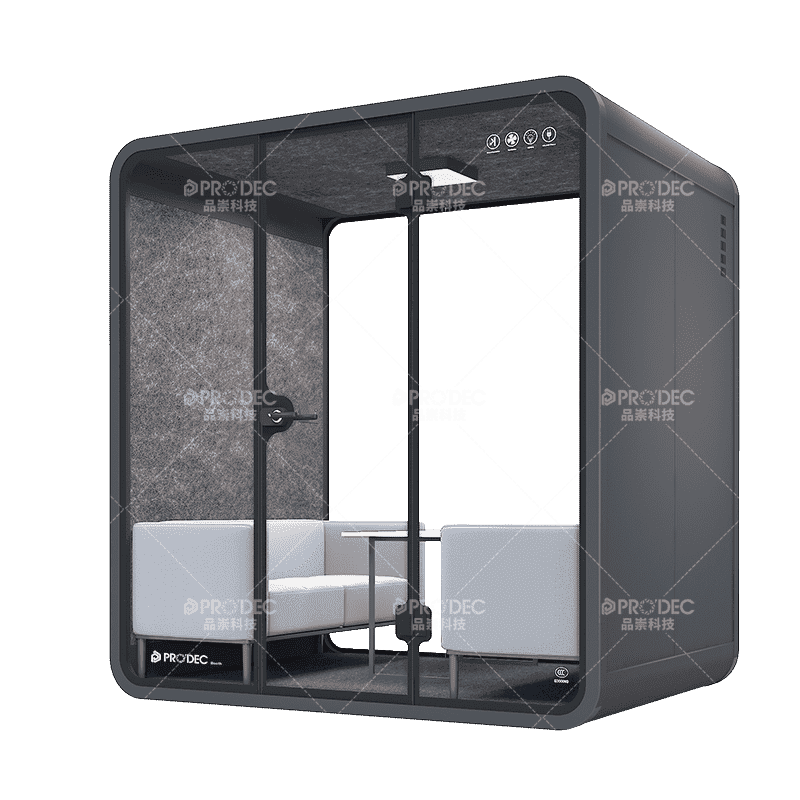

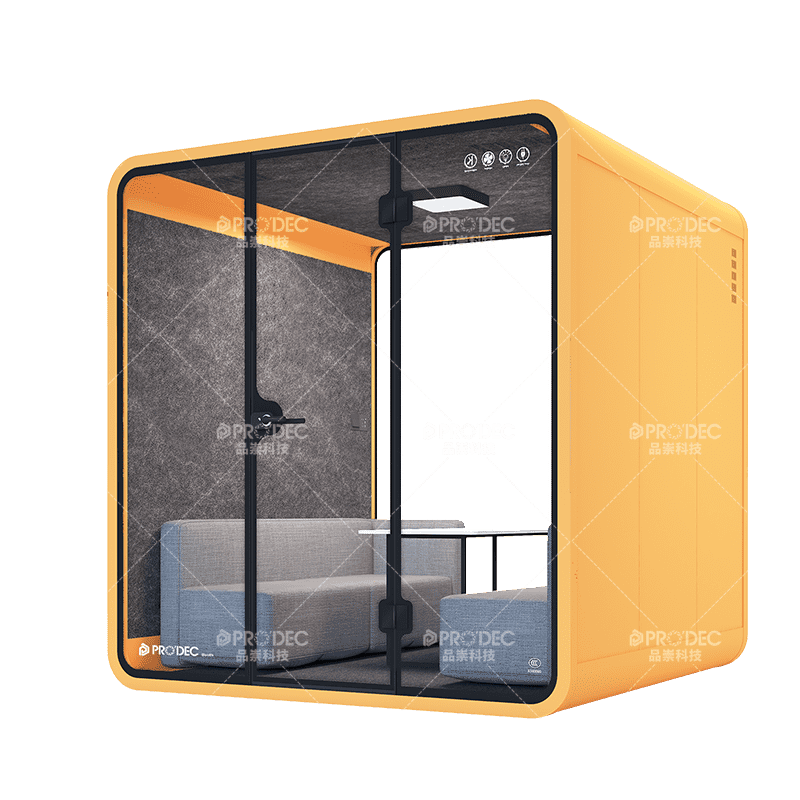

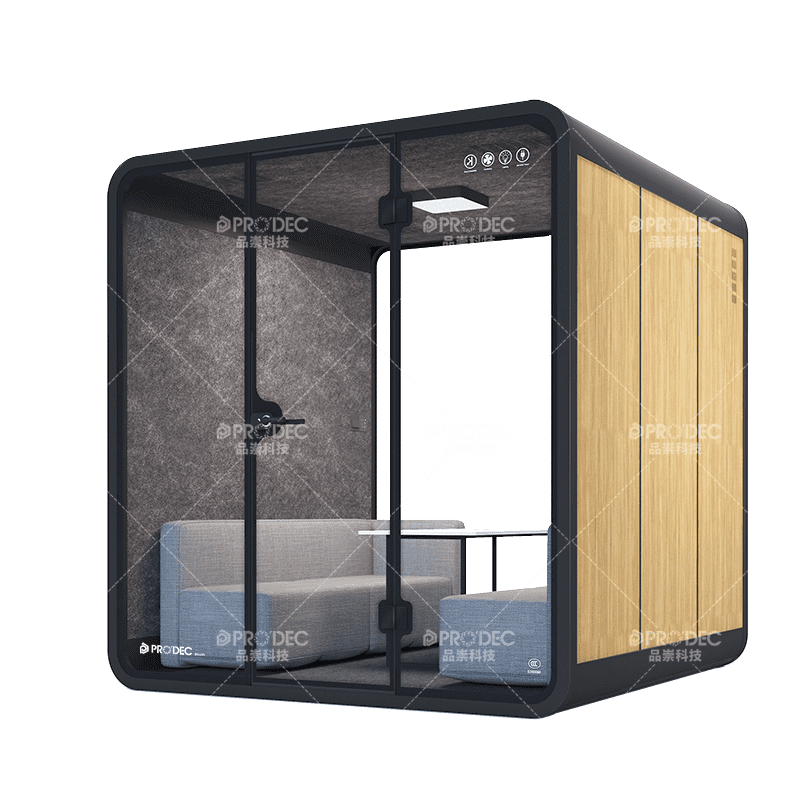

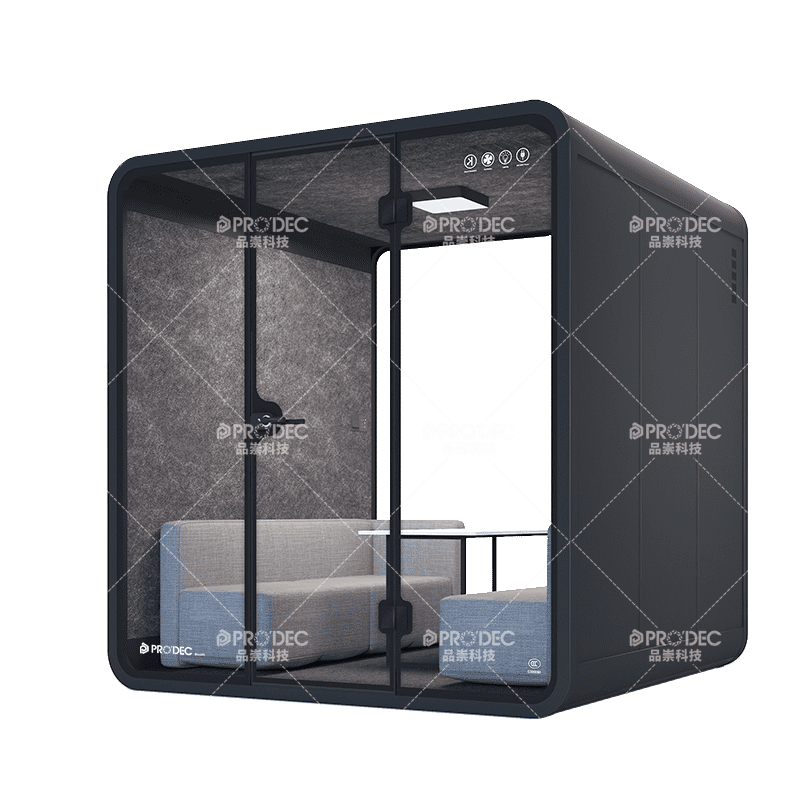

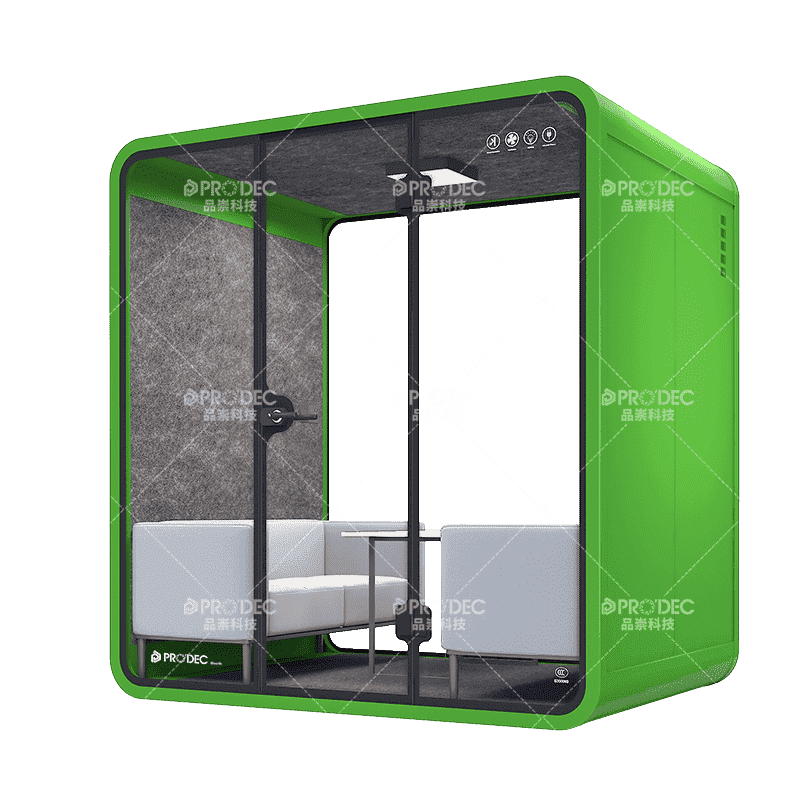

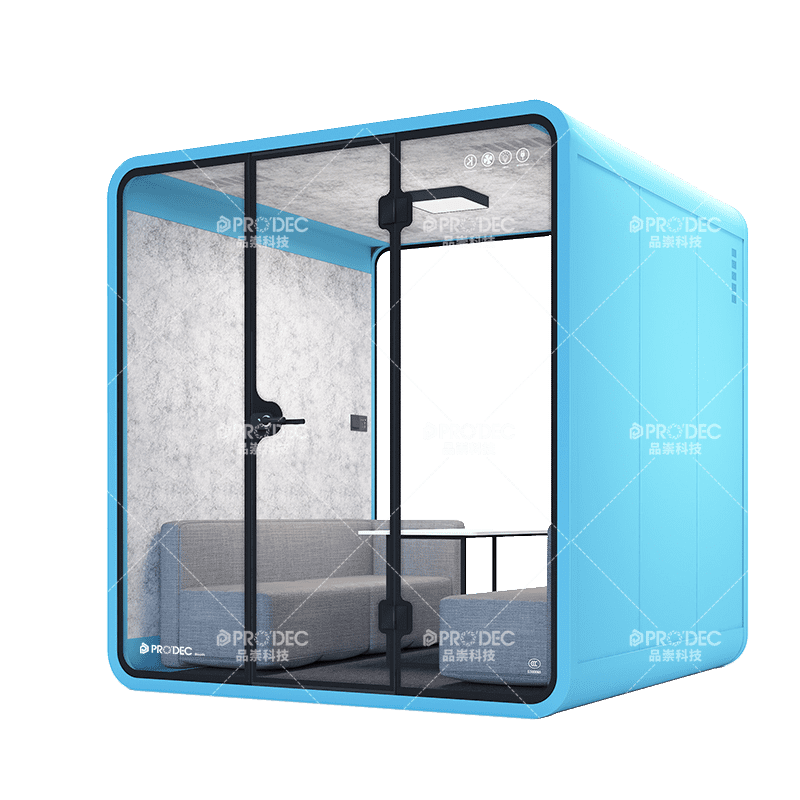

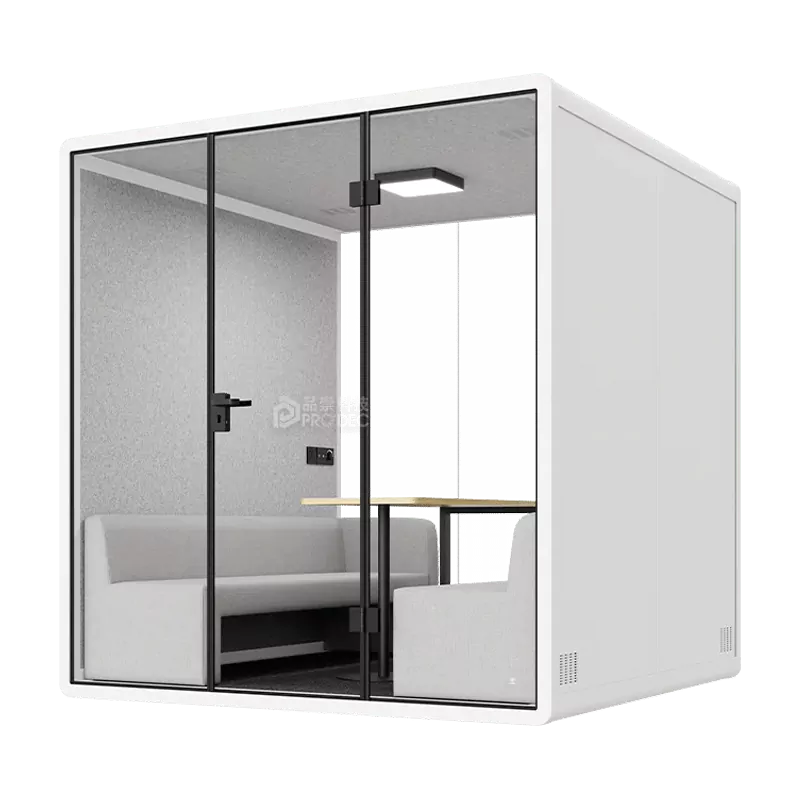

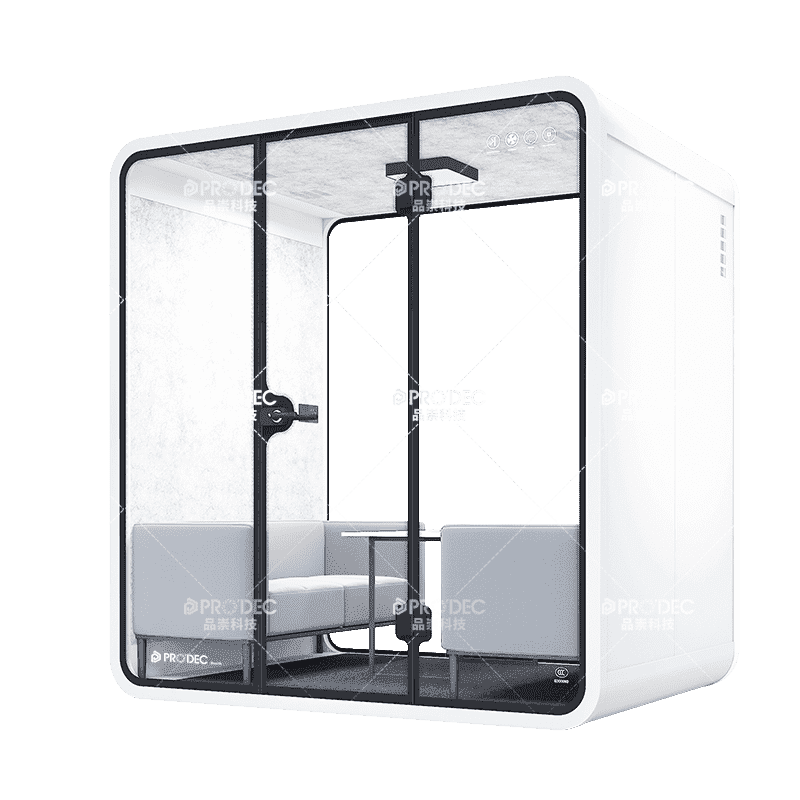

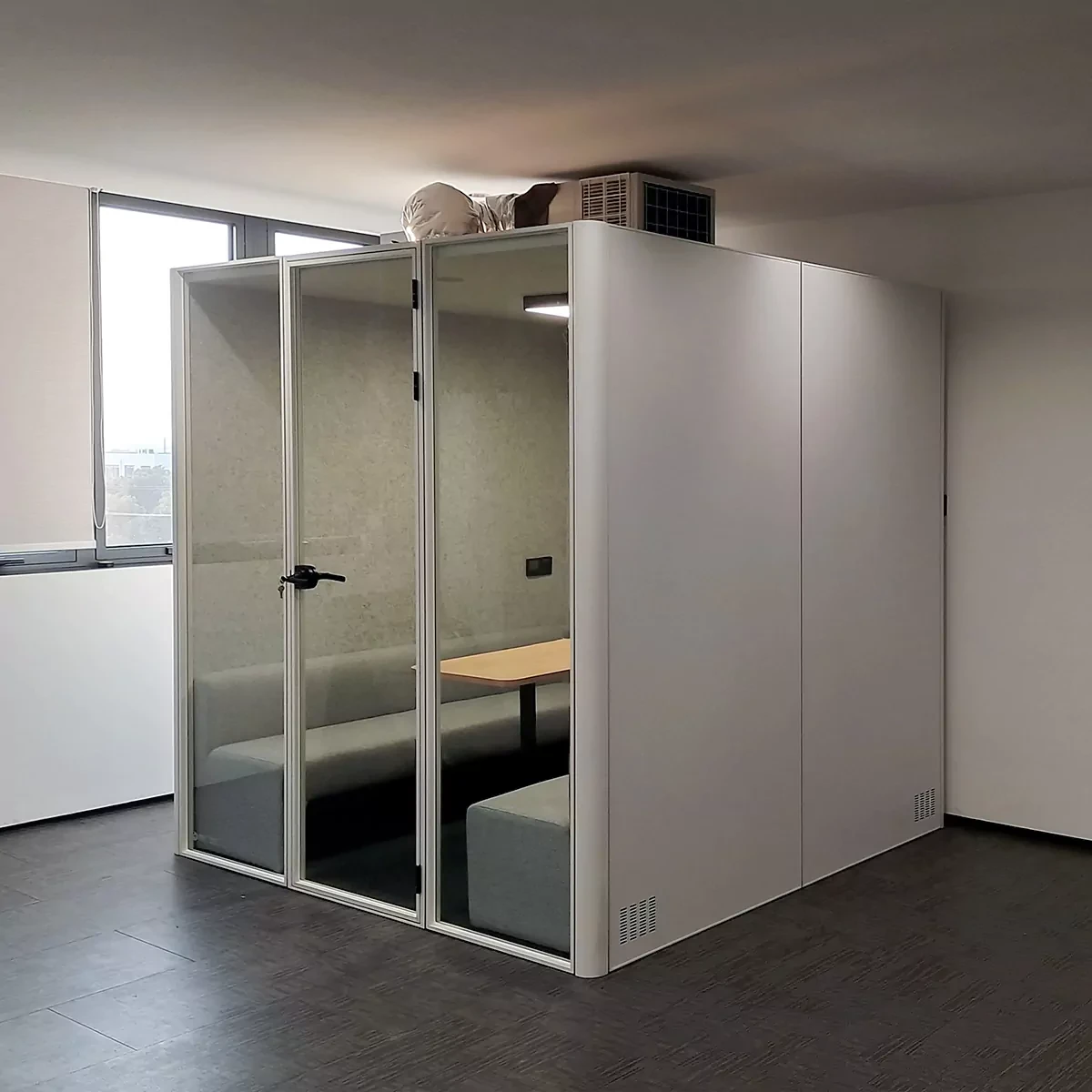

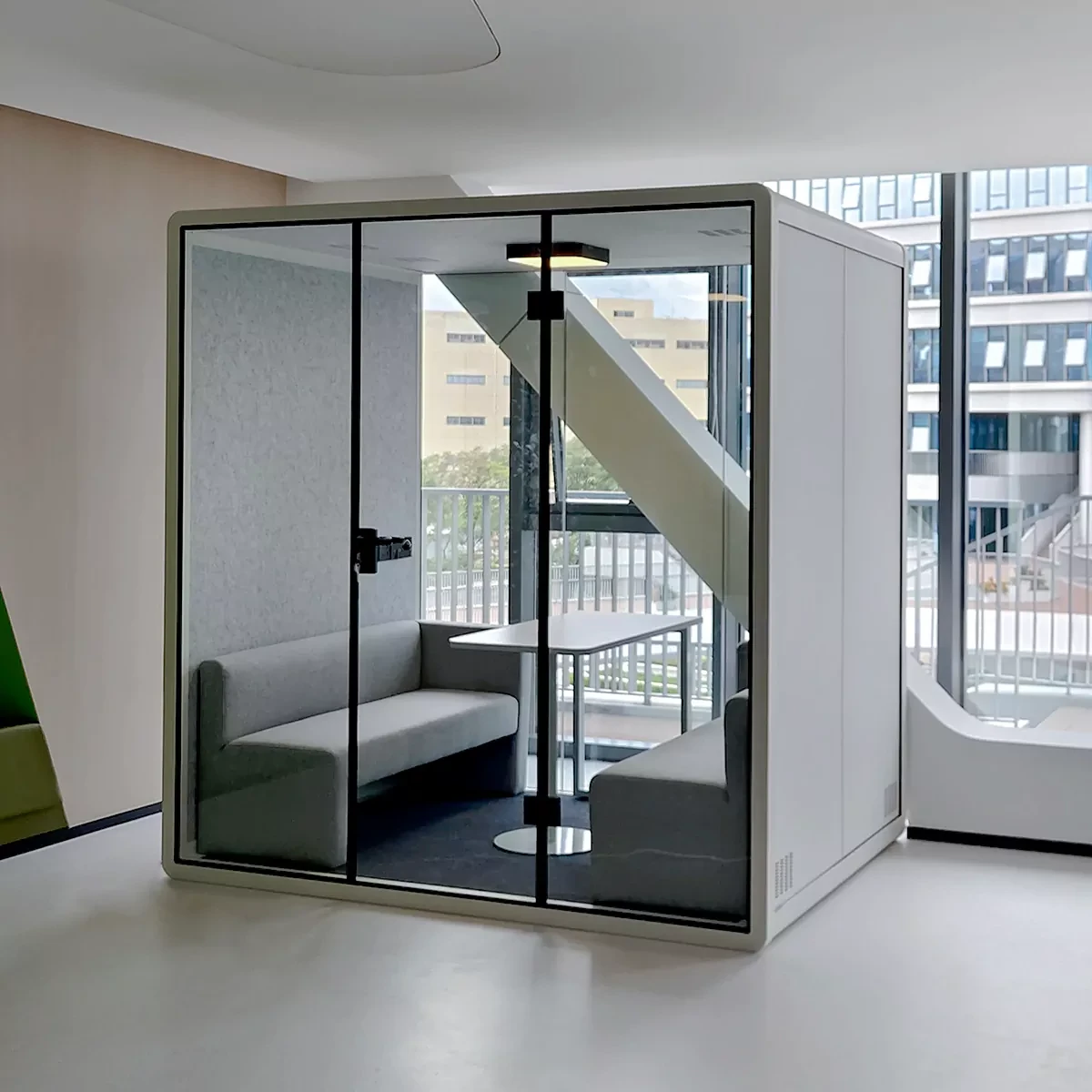

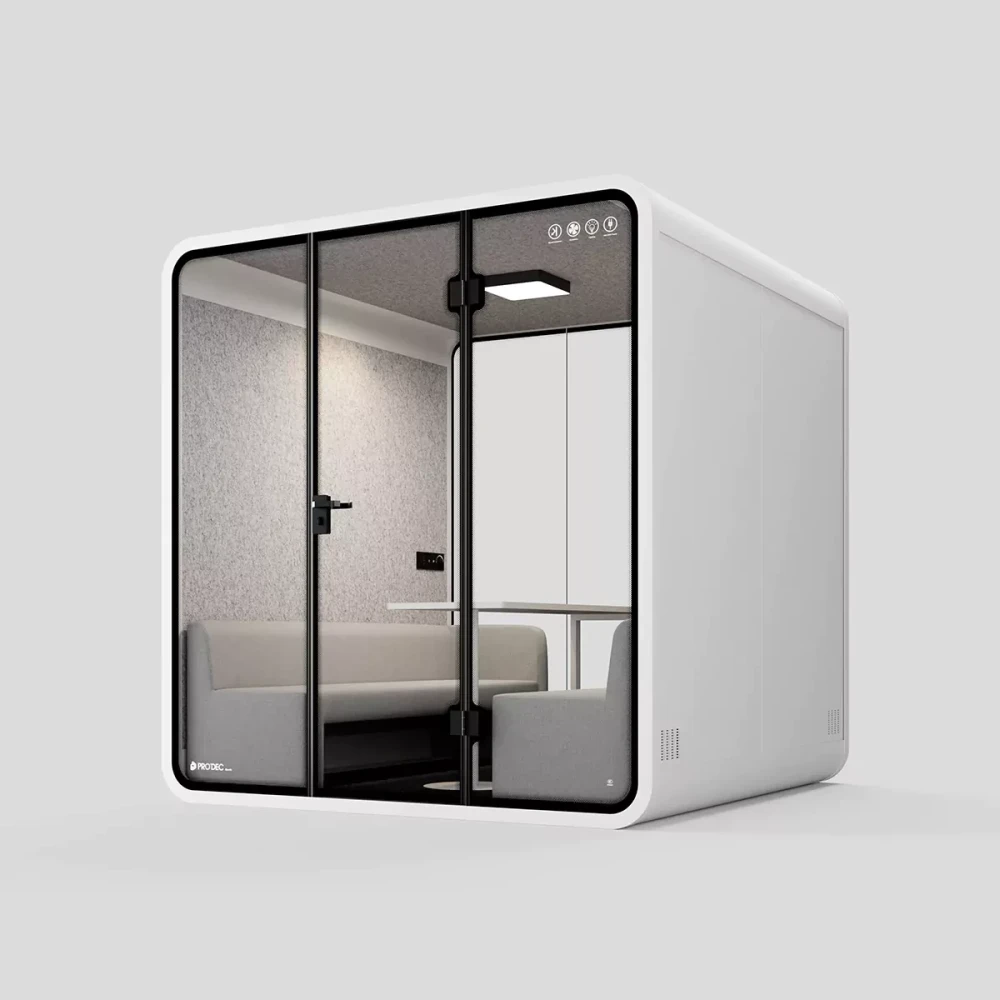

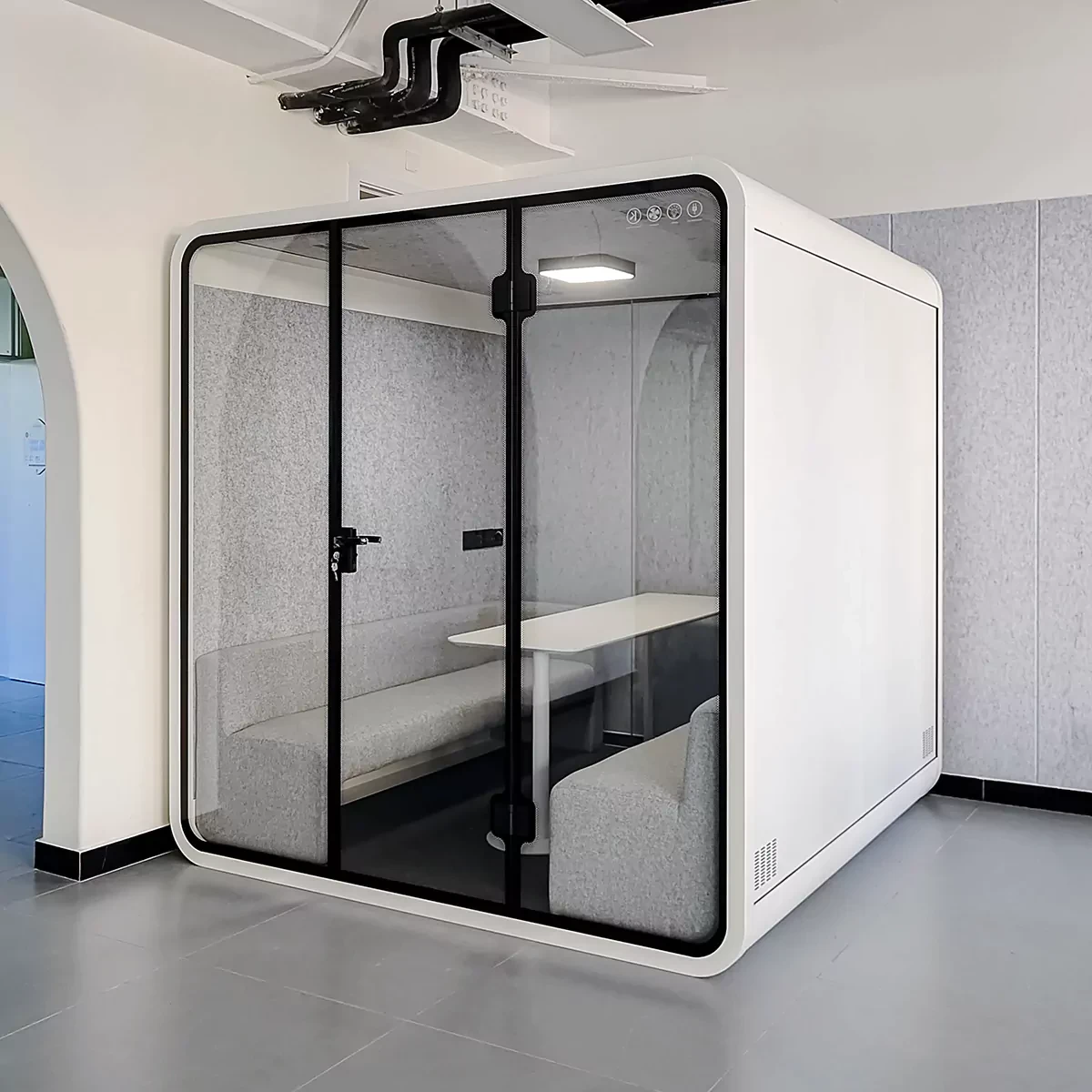

4人L型
6人XL型

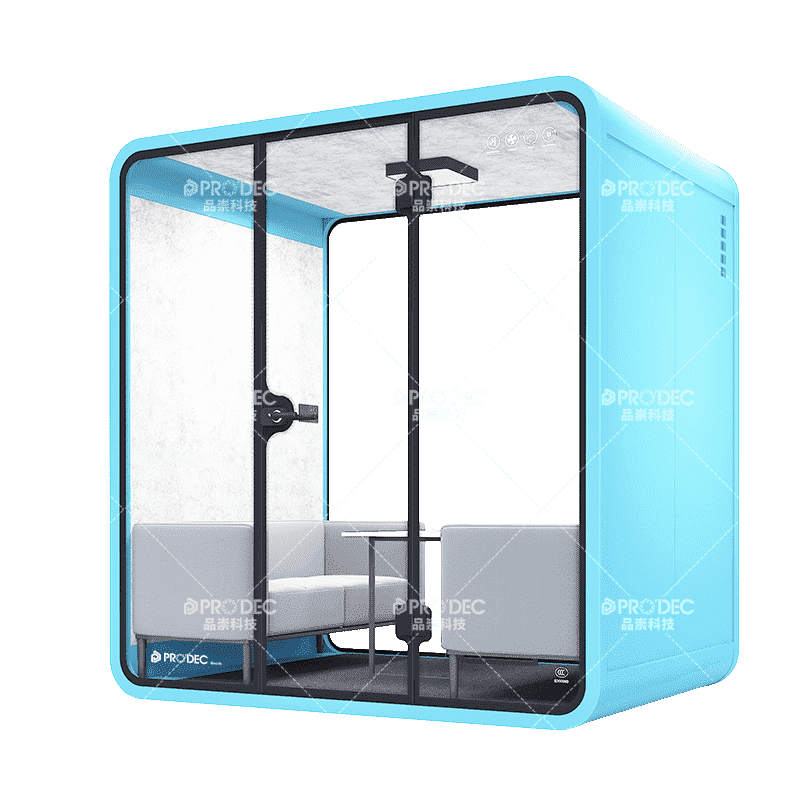

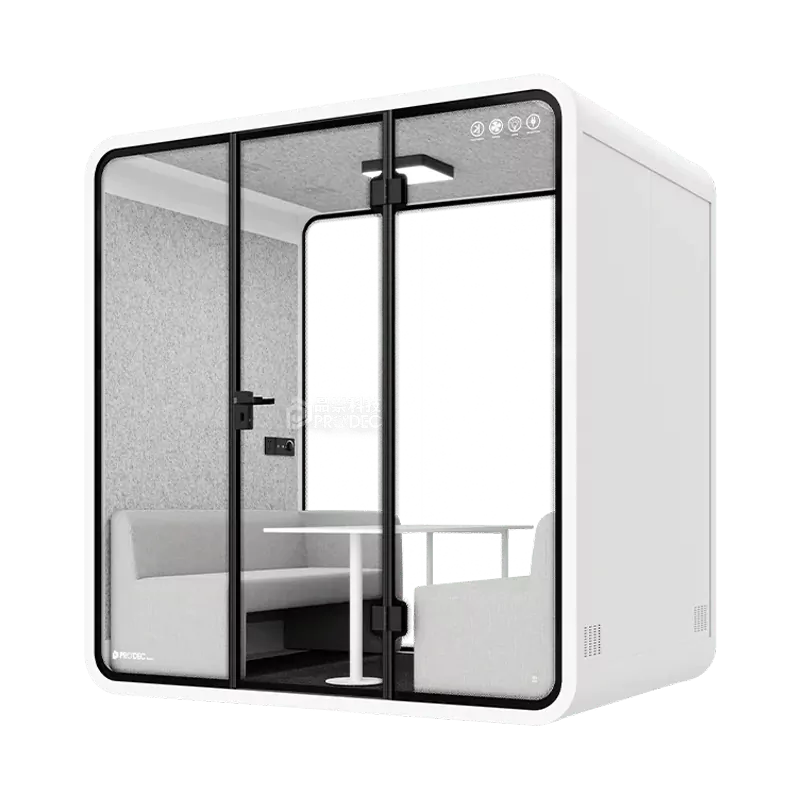

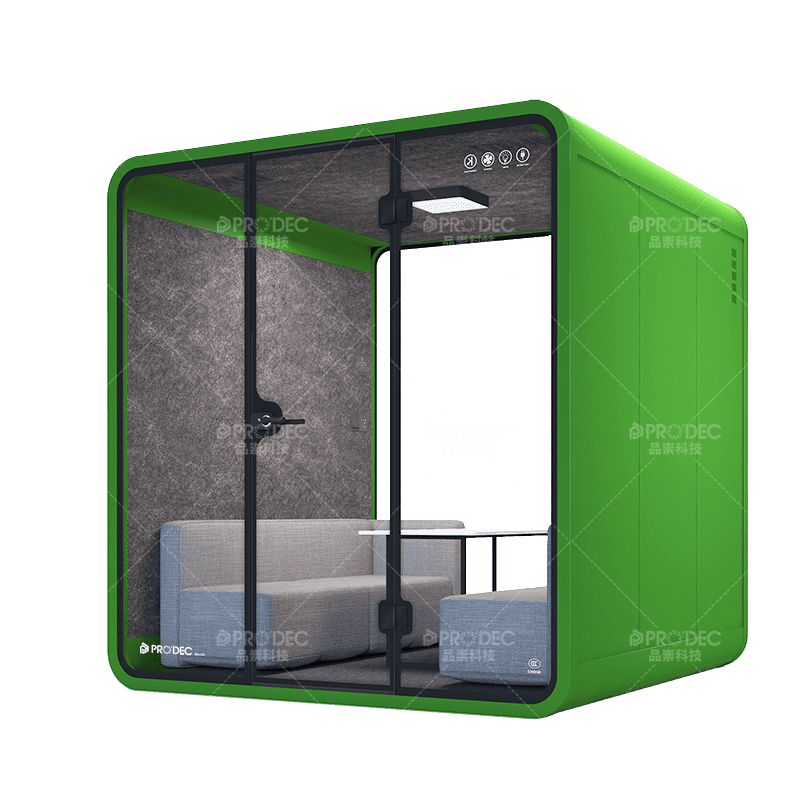

4人L型
6人XL型
Product introduction
工作
会议
播音
电话
琴房
学习
架子鼓
萨克斯
小提琴
烟室
Investigation on the current situation of office environment
Over 50% of people have a hard time concentrating in open-plan offices
-Research source: University of Sydney
It takes20 minto regain your focus after a small distraction
-Source: University of California
80% of meetings are held between 1-4 people, which is efficient
-Source: Rapal Study, 2018
You are 15% less productive working in an open-plan office
-Source: BBC Capital
Product structure
Product characteristics
多重声障式的设计解决漏音问题的同时，大大降低了新风系统的噪音，减少了舱室内外的声交互，每三分钟便可完全更新一次舱内空气。
The air in the booth can be circulated in three minutes, to ensure it won't be stuffy in the booth.
隔音舱采用列车式的隔音钢化玻璃，符合隔音要求的同时，满足安装和使用的安全性和稳定性。
Our booth adopts train type sound insulation tempered glass, which meets the requirements of sound insulation and meets the safety and stability of installation and use.
我们采用定制尺寸的尼龙地毯，每个舱体只需一块地毯满铺。嵌入式的安装方式保证舱内地面的水平，不易滑动。同时，尼龙地毯拥有良好的吸音性能，满足我们对声学设计的要求。
We use custom-made nylon carpet, which only needs one piece of carpet for a booth. The embedded installation method ensures the level of the booth floor and is not easy to slide. At the same time, nylon carpet has good sound absorption performance, which can meets our requirements for acoustic
适配100-240V/50-60Hz和12VーUSB电源供应系统，符合舱内外主流设备器材和能源环境使用。三控开关分别控制一个照明灯及两个排气扇。
Our booth is equipped with 12V-USB power supply and power rated for100-240V/50-60HZ, complying with common equipment requirements. The three control switches control one lamp and two exhaust fans respectively.
舱室4000K自然光色温LED中央照明系统，标配150LX光照满足常态使用需求，专业光照要求舱内预置可扩充电源。
Equipped with 4000K daylight color temperature LED lighting system150LX), it would satisfy the needs of normal activities.
In the event of additional power requirements, a backup power supply is readily installed inside the booth.
隔音舱采用38mm厚的双层铝蜂窝板，铝板表面贴有高密度阻尼隔音毡以达到隔音需求，内饰搭配声学材料以到达声环境的指标。设计值RW+Ctr35dB(±5dB)和RT0.25(±0.1s)
Our booth is made of 38mm thick double-layer aluminum honeycomb panel. Design value: Rw+Ctr 35db(+5db)and RT0.25s(+0.1s).
魔术贴绑带应用于声学材料背面的安装，环保、无味依据 《进出口染色纺织品和皮革制品中禁用偶氮染料的检验方法》 标准进行检测，符合欧洲ROHS标准。稳固、快捷的安装便于后期的循环利用。
Magic tape band is used for the back side installation of acoustic materials. It is environmentally friendly and odourless, comply with European ROHS standard

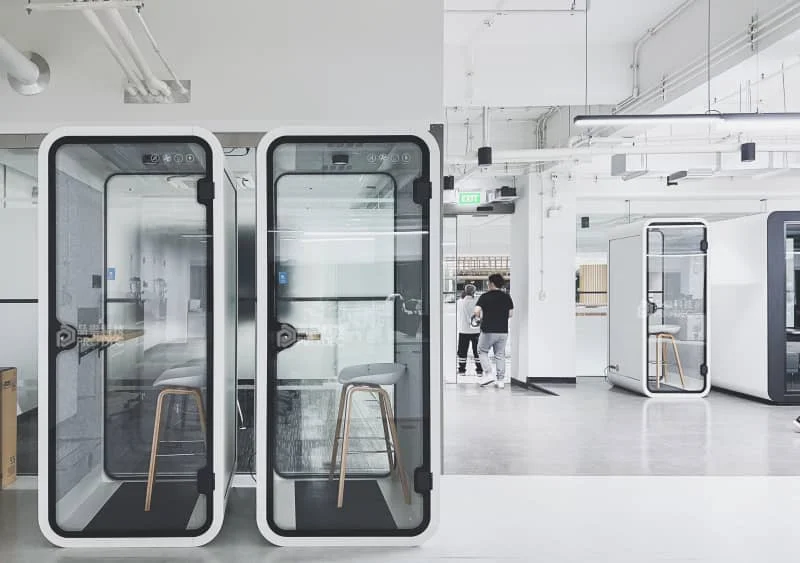

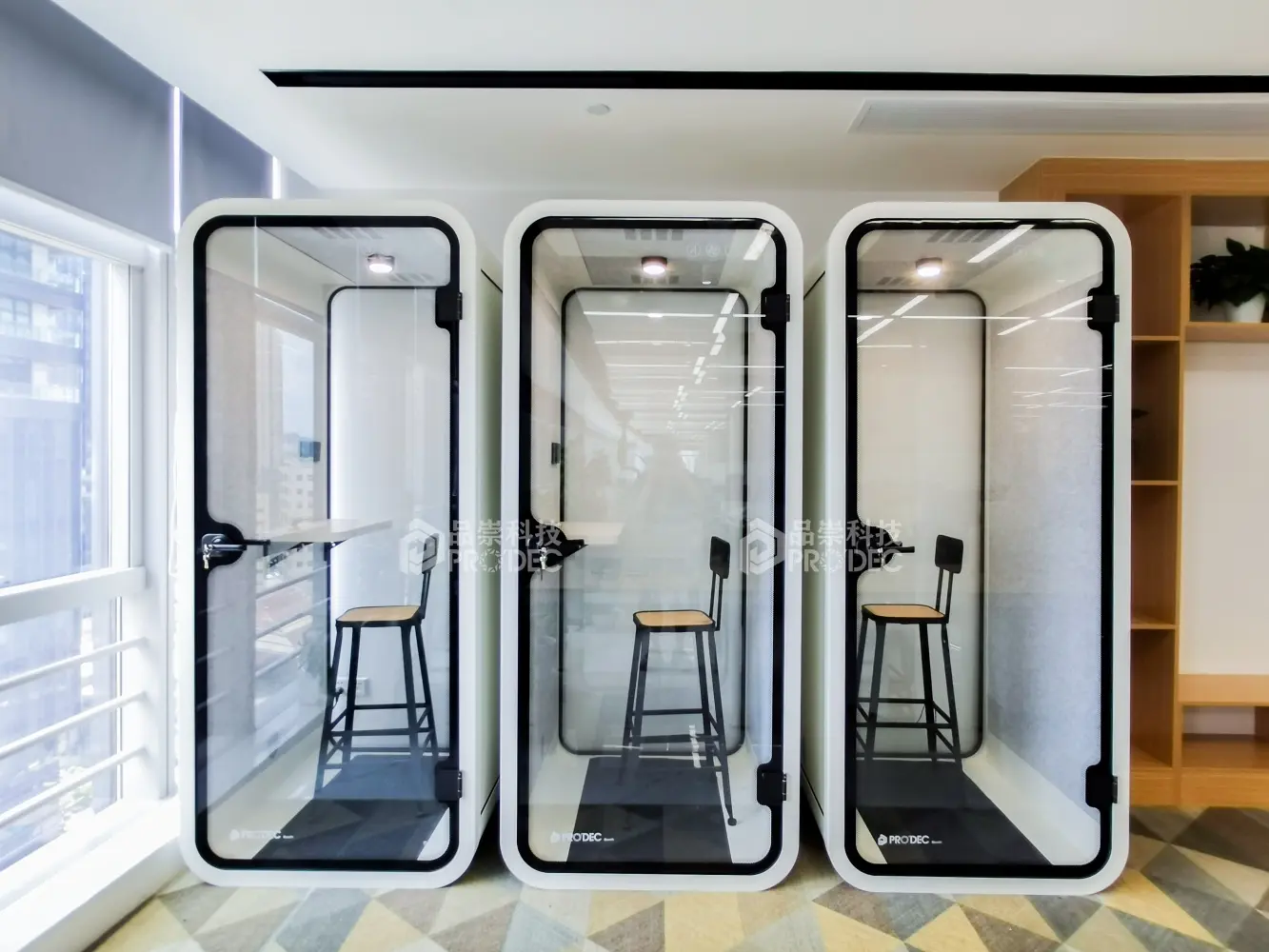

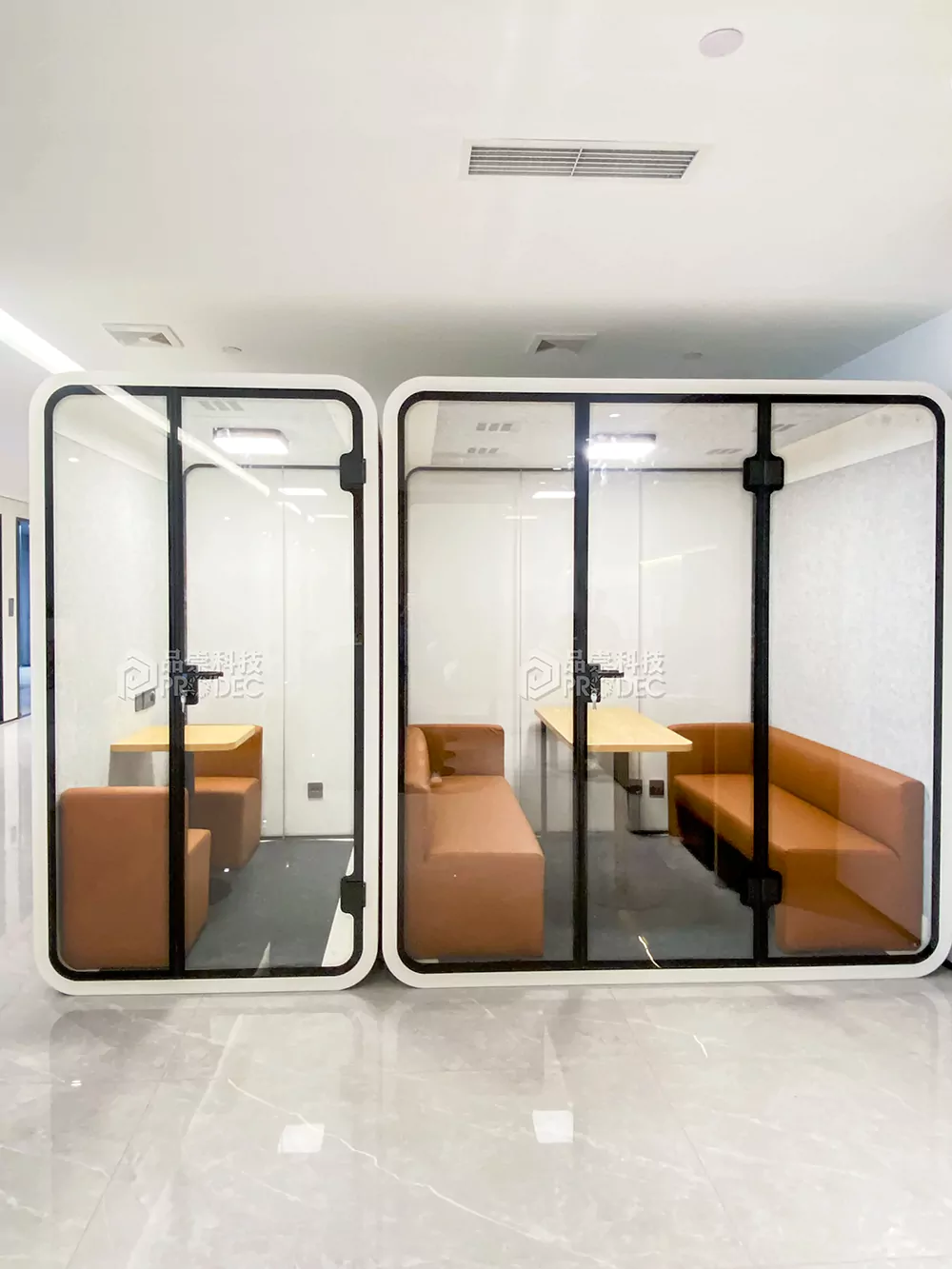

Application scenario
Company consultation

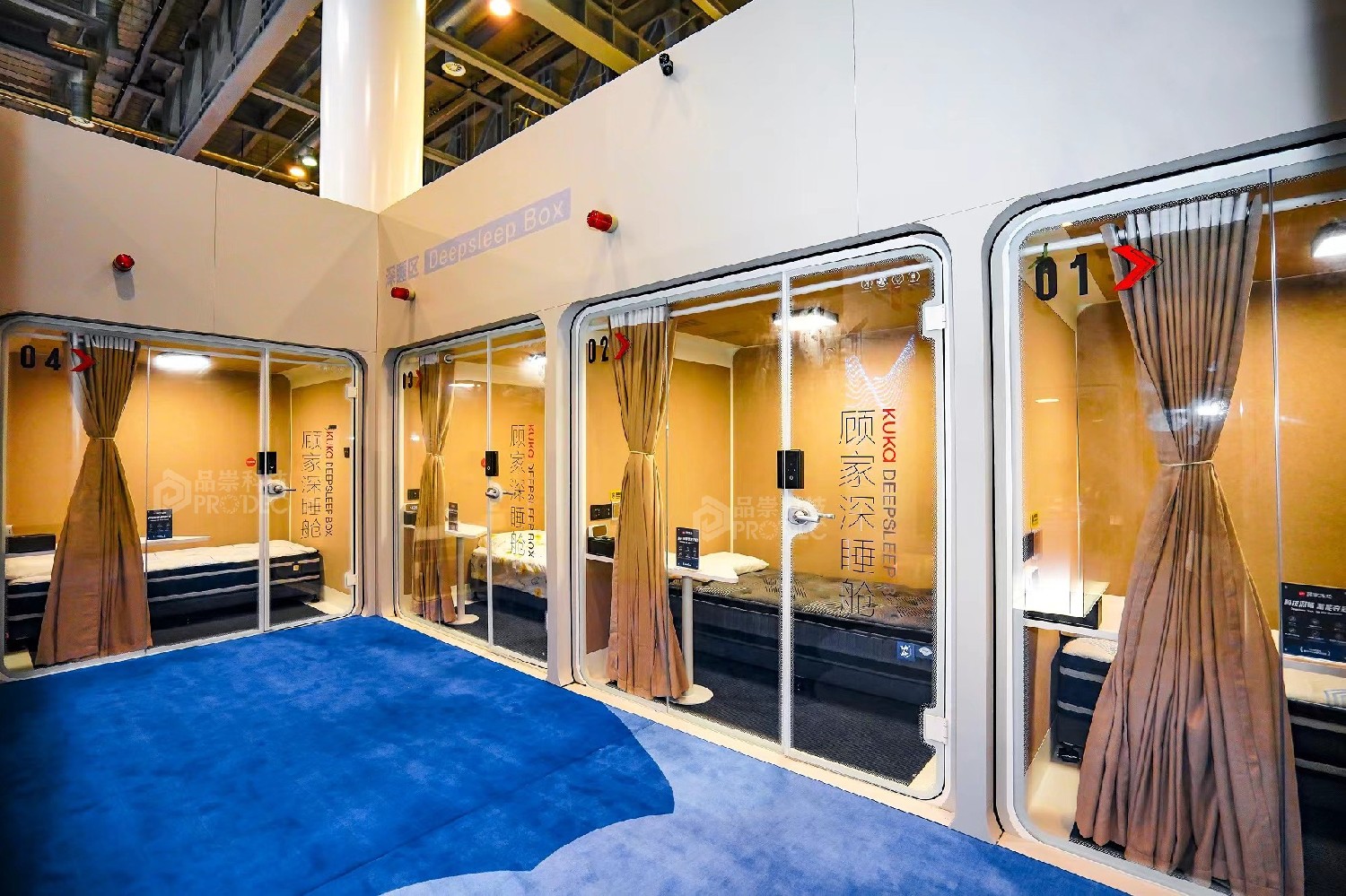

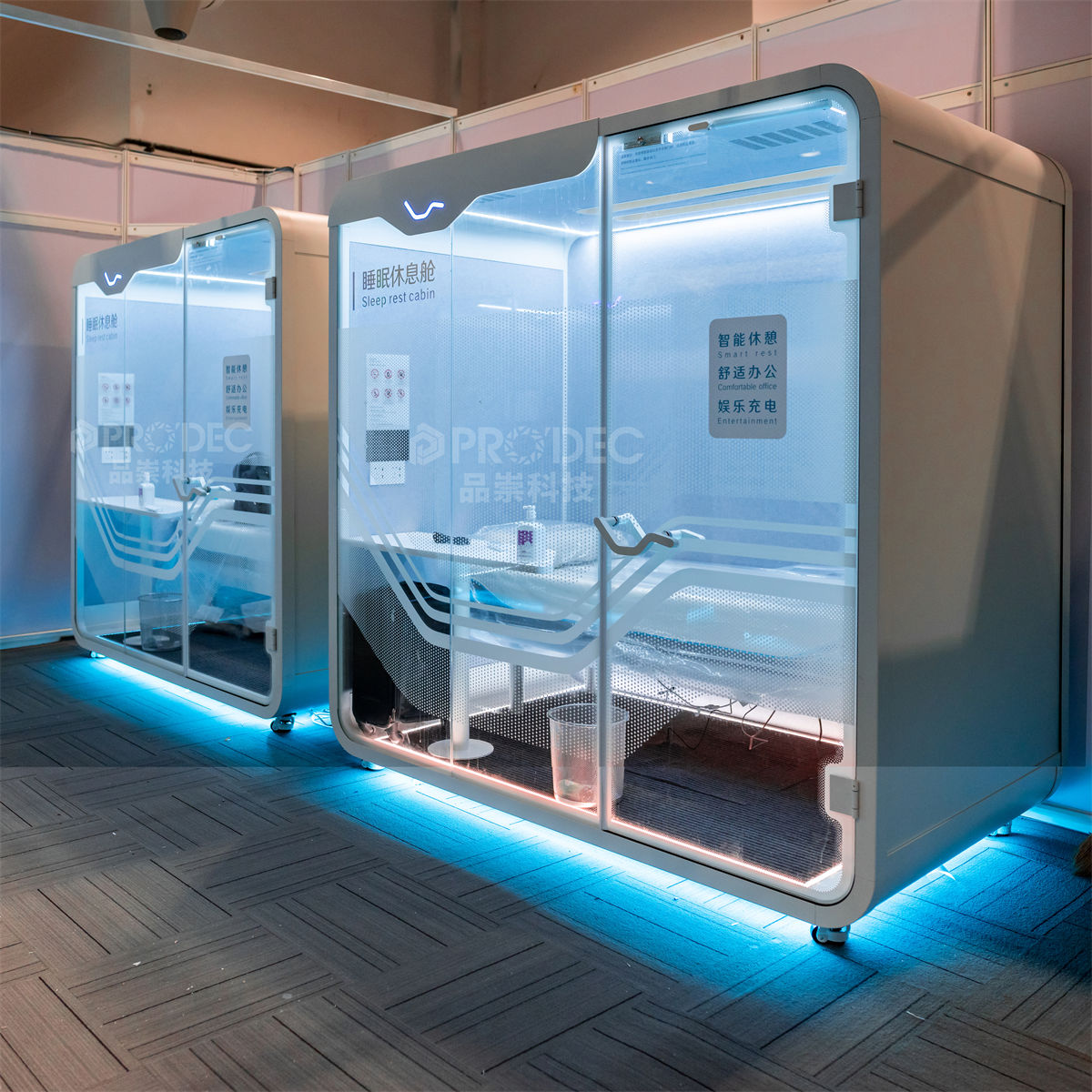

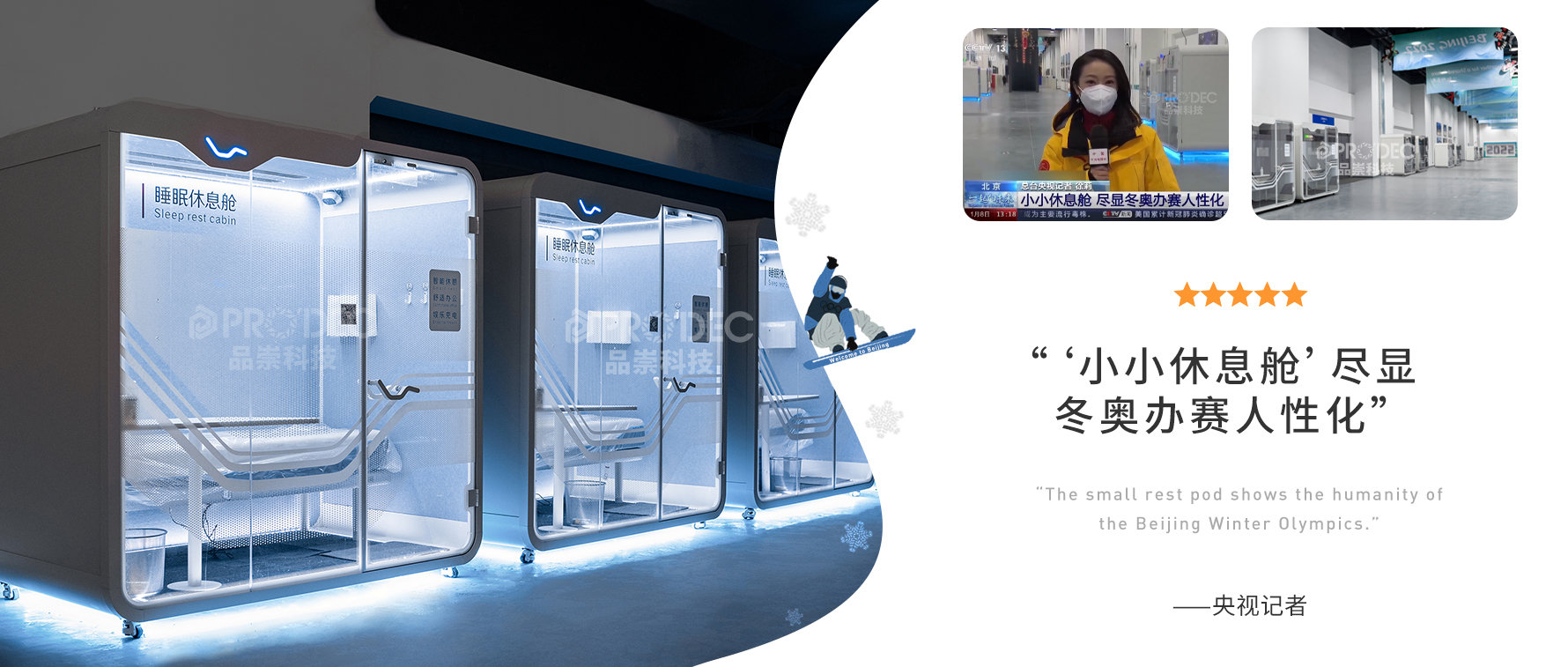

继北京冬奥会之后，我们很荣幸再次为亚运会助力睡眠休息仓，于主媒体中心构建深睡空间，为各国媒体记者朋友提供一个完美的休息场···

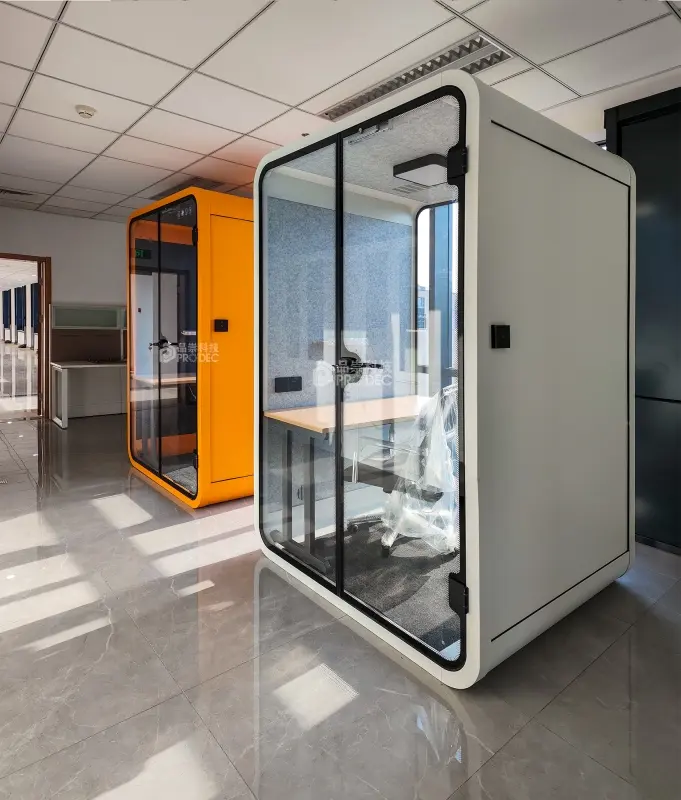

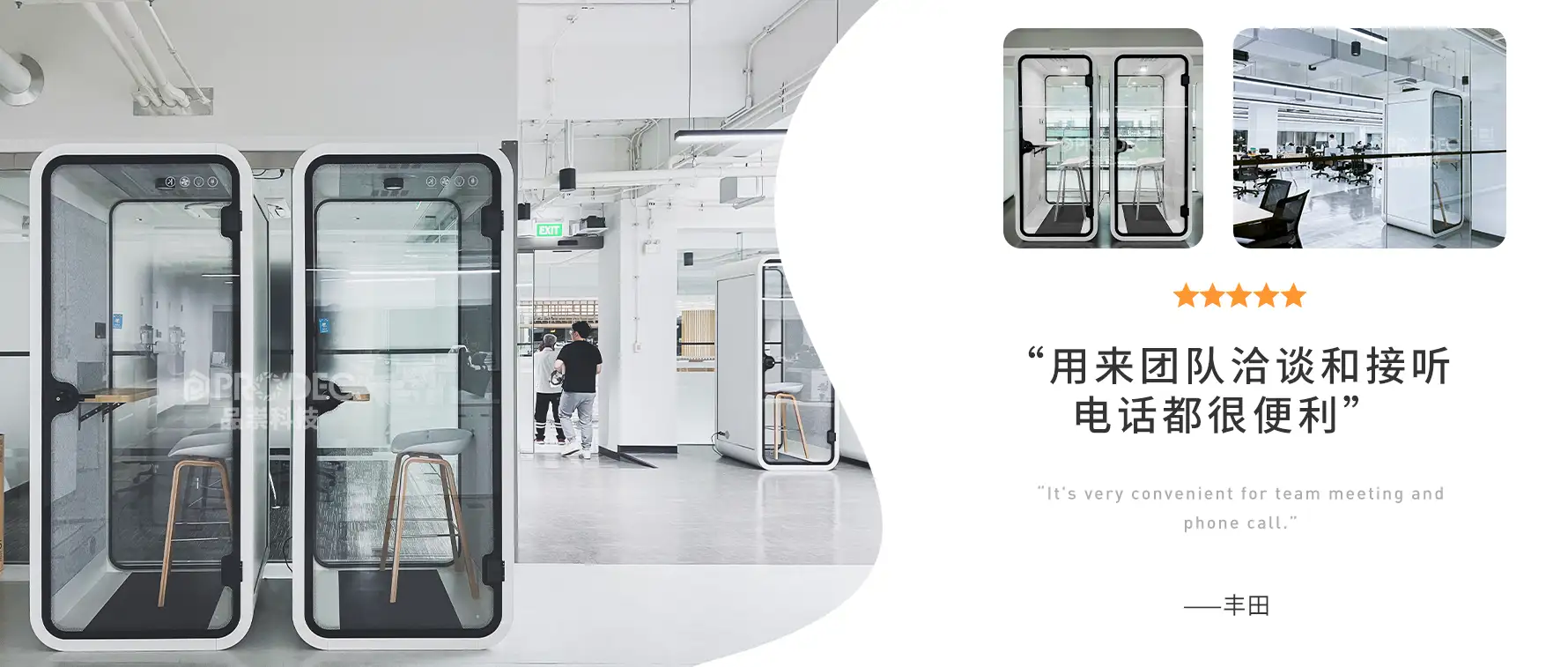

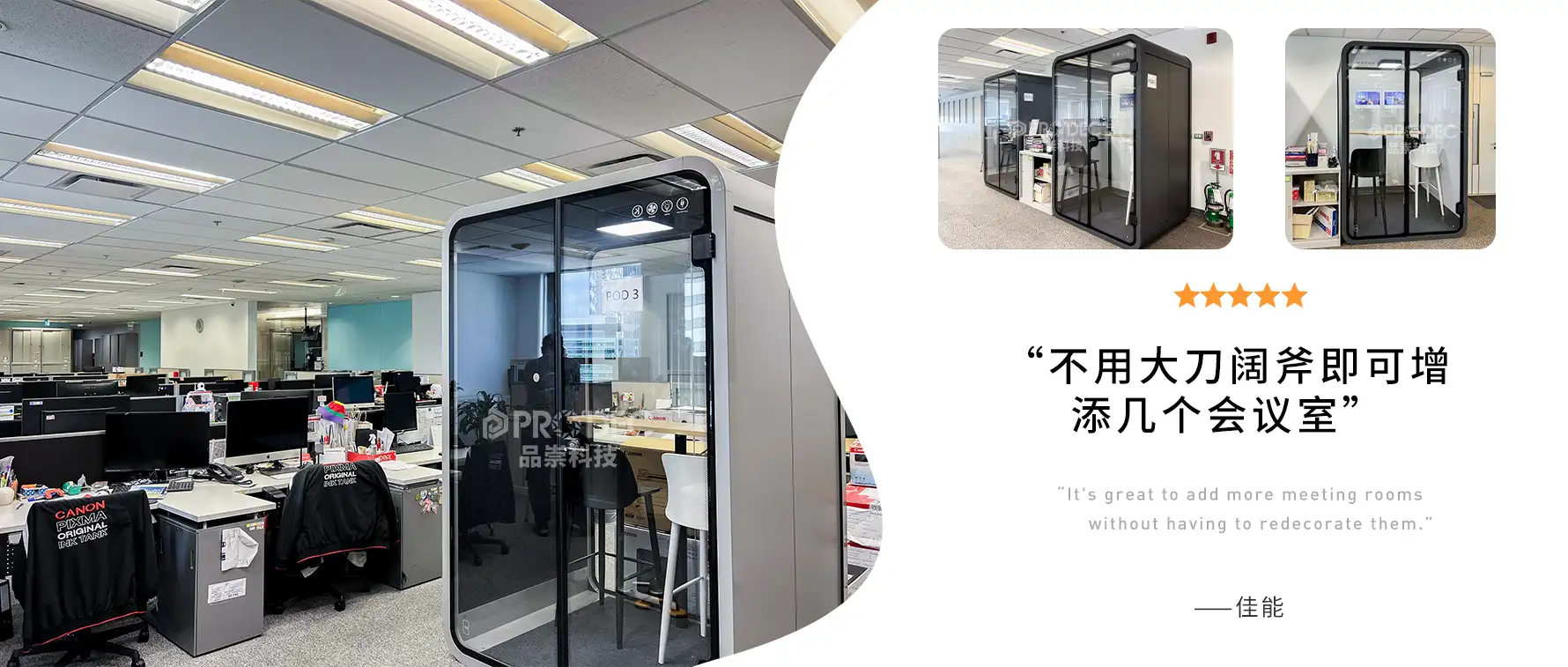

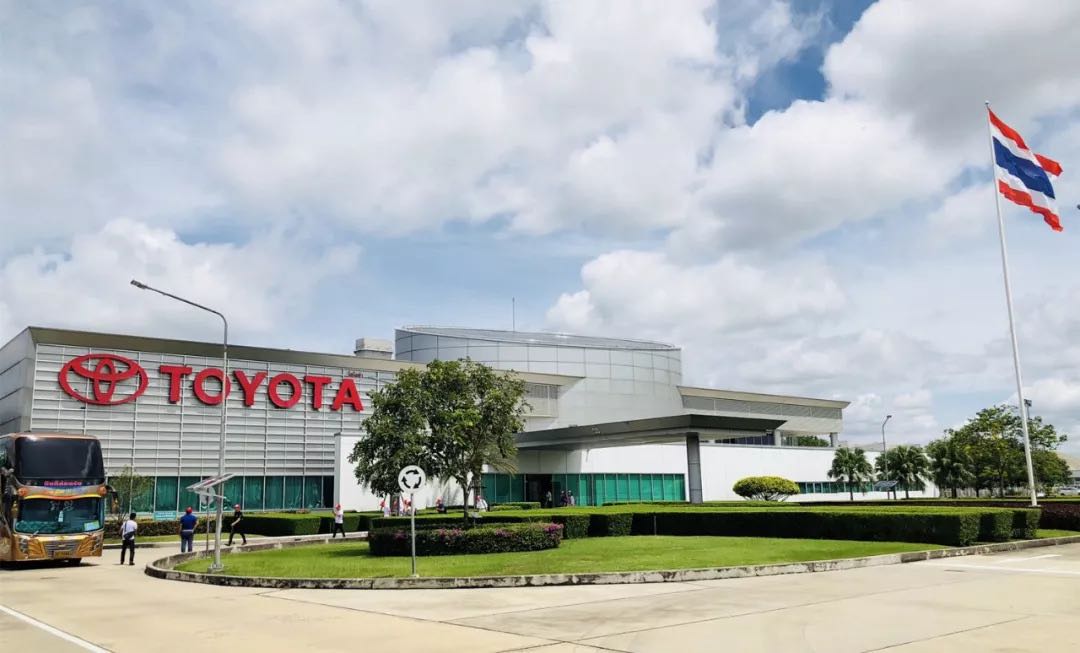

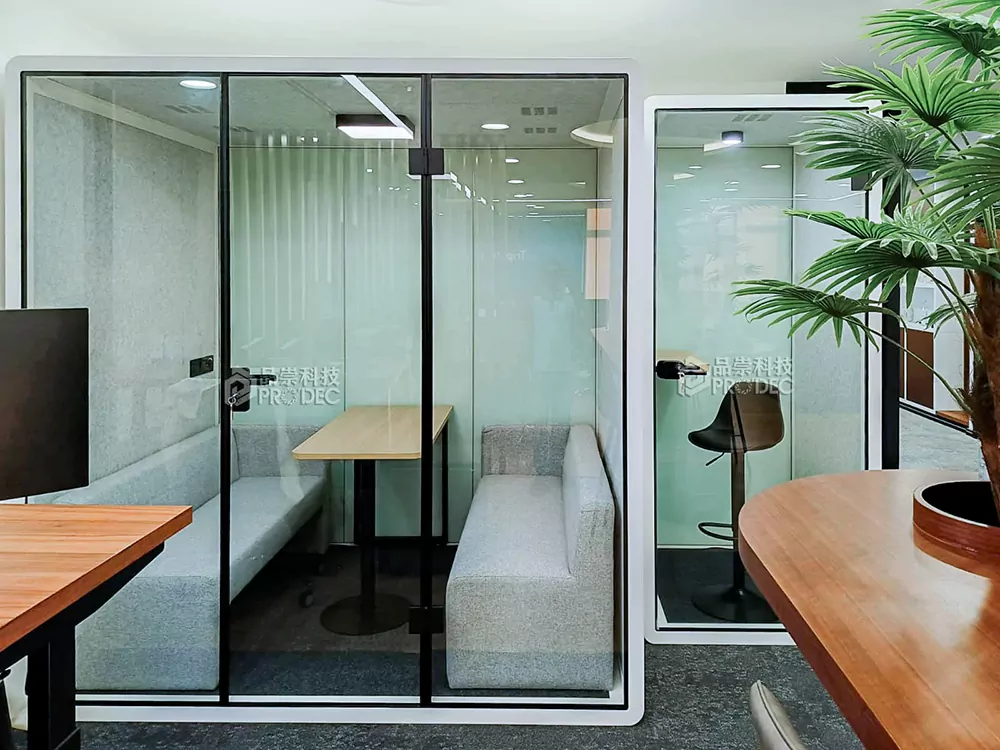

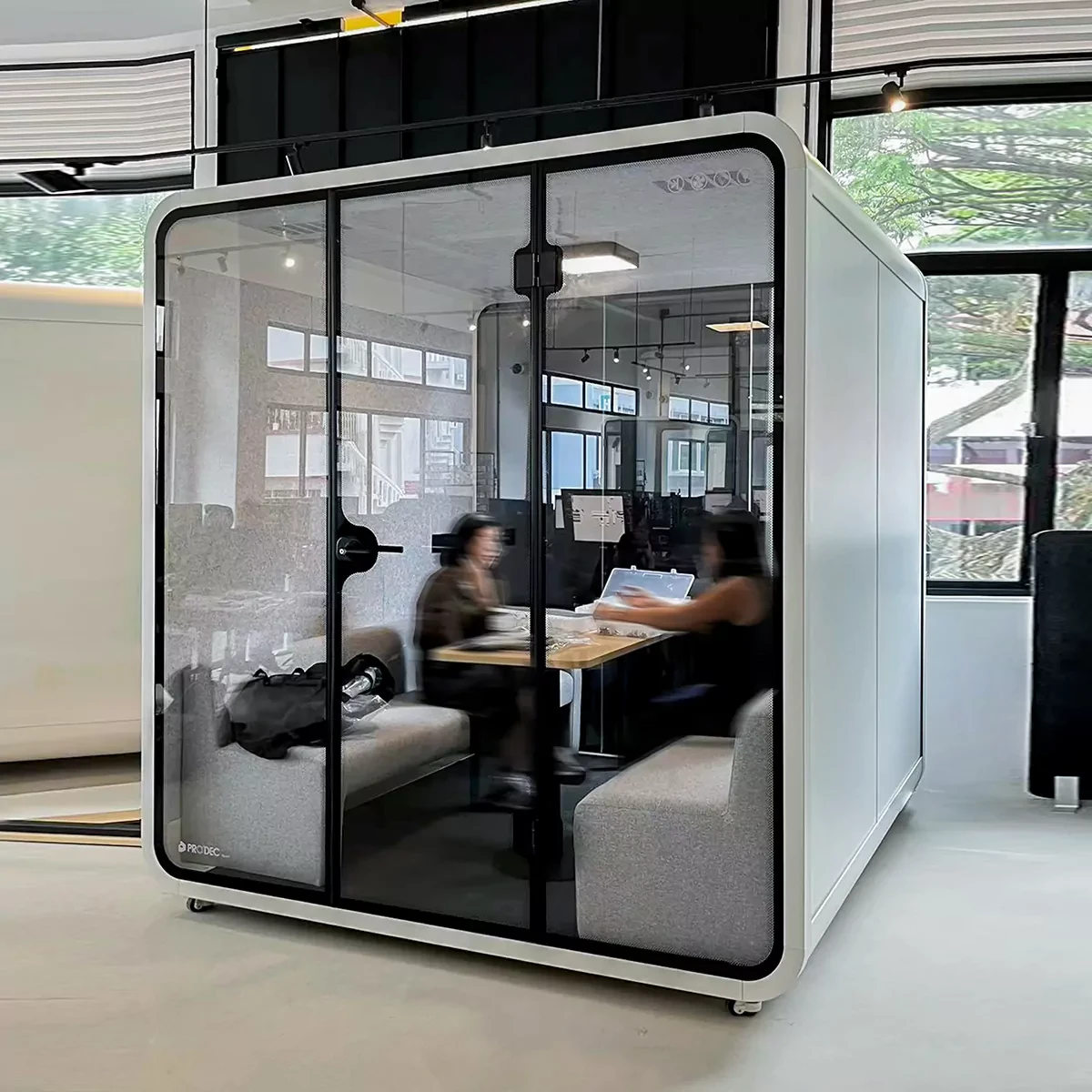

在现代办公环境中，开放式空间已成为一种趋势，但随之而来的是噪音和缺乏隐私的问题。针对这一挑战，我们与Toyota泰国总部合作，···

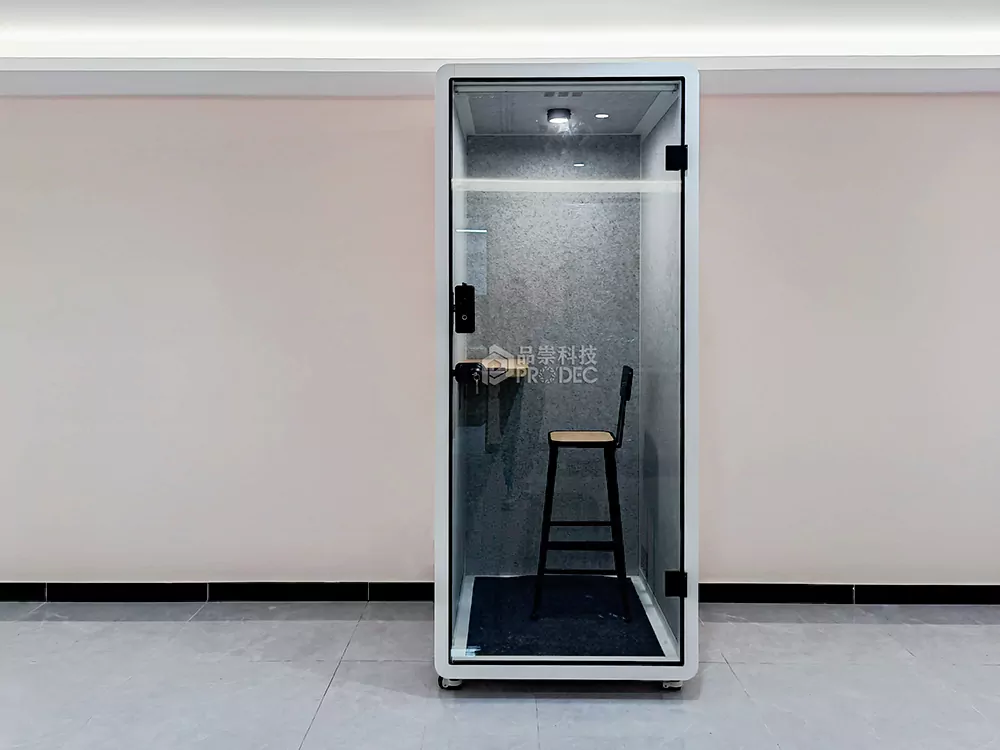

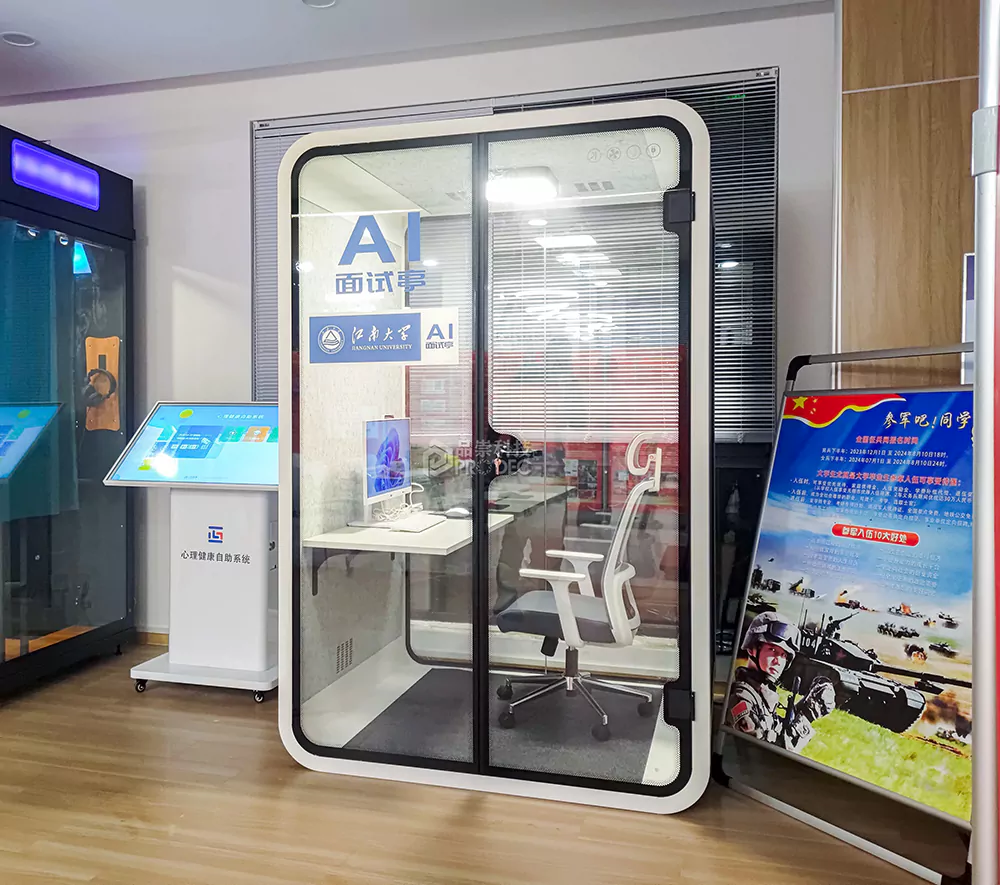

摩肩接踵的面试场景往往让学生感到紧张和压力。为了提供一个舒适、专注的面试环境，沈阳工业大学引入了隔音舱作为学生面试亭的创···

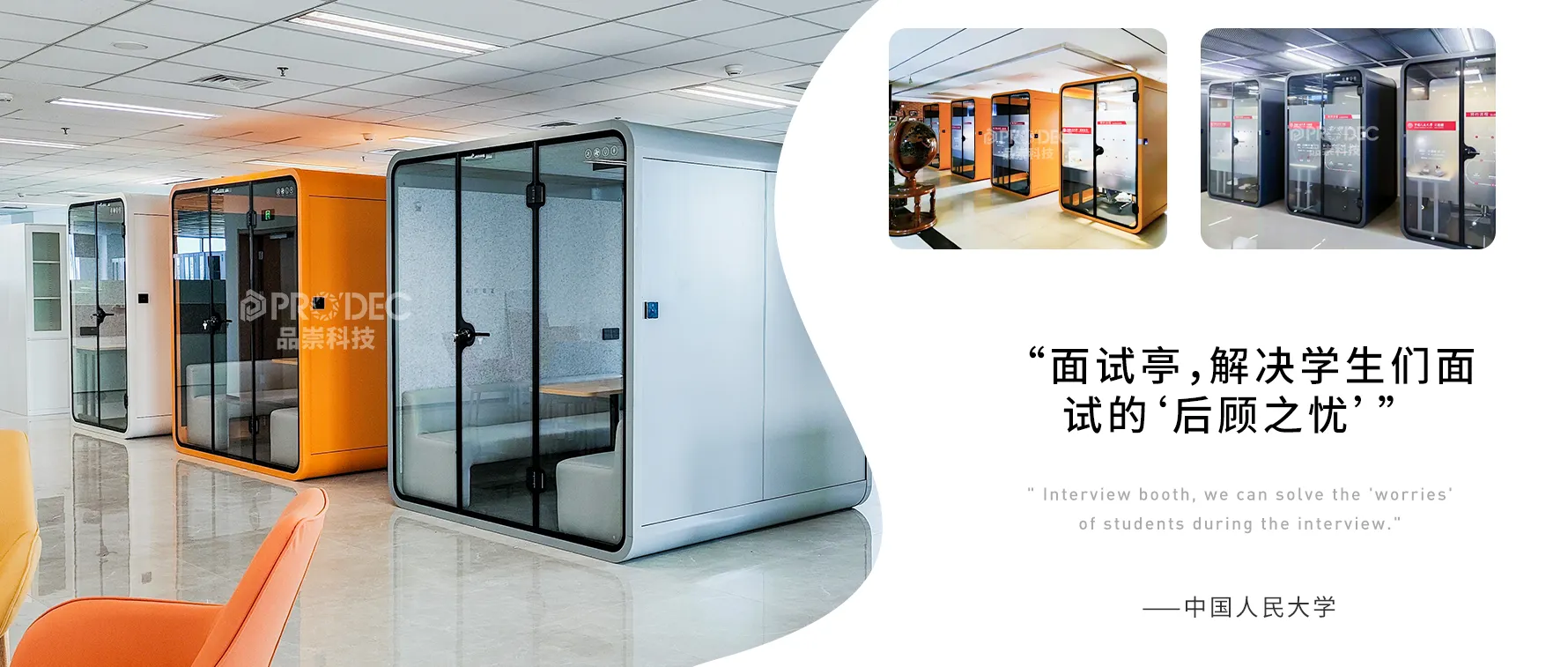

中国人民大学最近购置了100多个隔音舱静音舱，为学生提供了自习、研讨、面试、线上考试等灵活便捷的场所。这些隔音舱静音舱的安装···
